SaunaLife Model CL5G 4-Person Cube Series Outdoor Sauna Kit
SaunaLife Model CL5G 4-Person Cube Series Outdoor Sauna Kit
SaunaLife Model CL5G 4 Person Cube Series Outdoor Sauna Kit

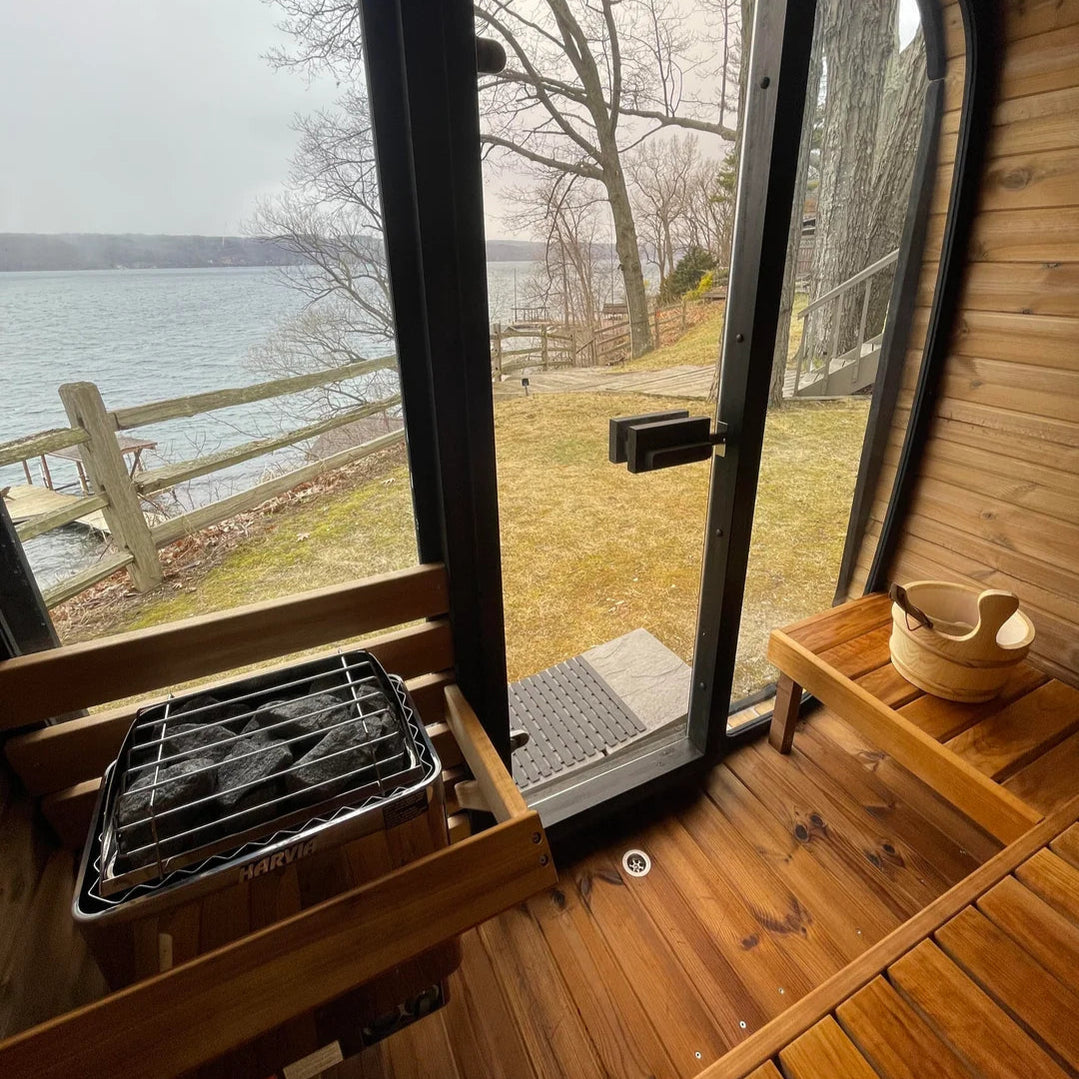

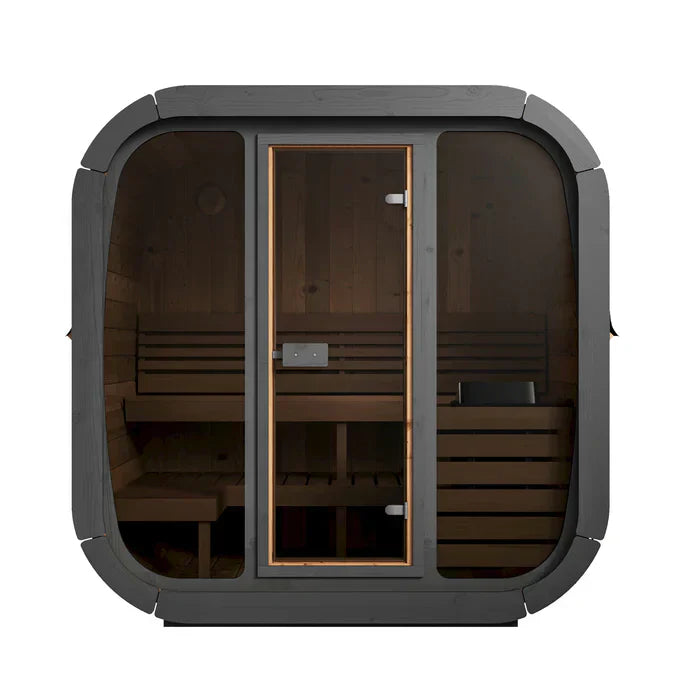

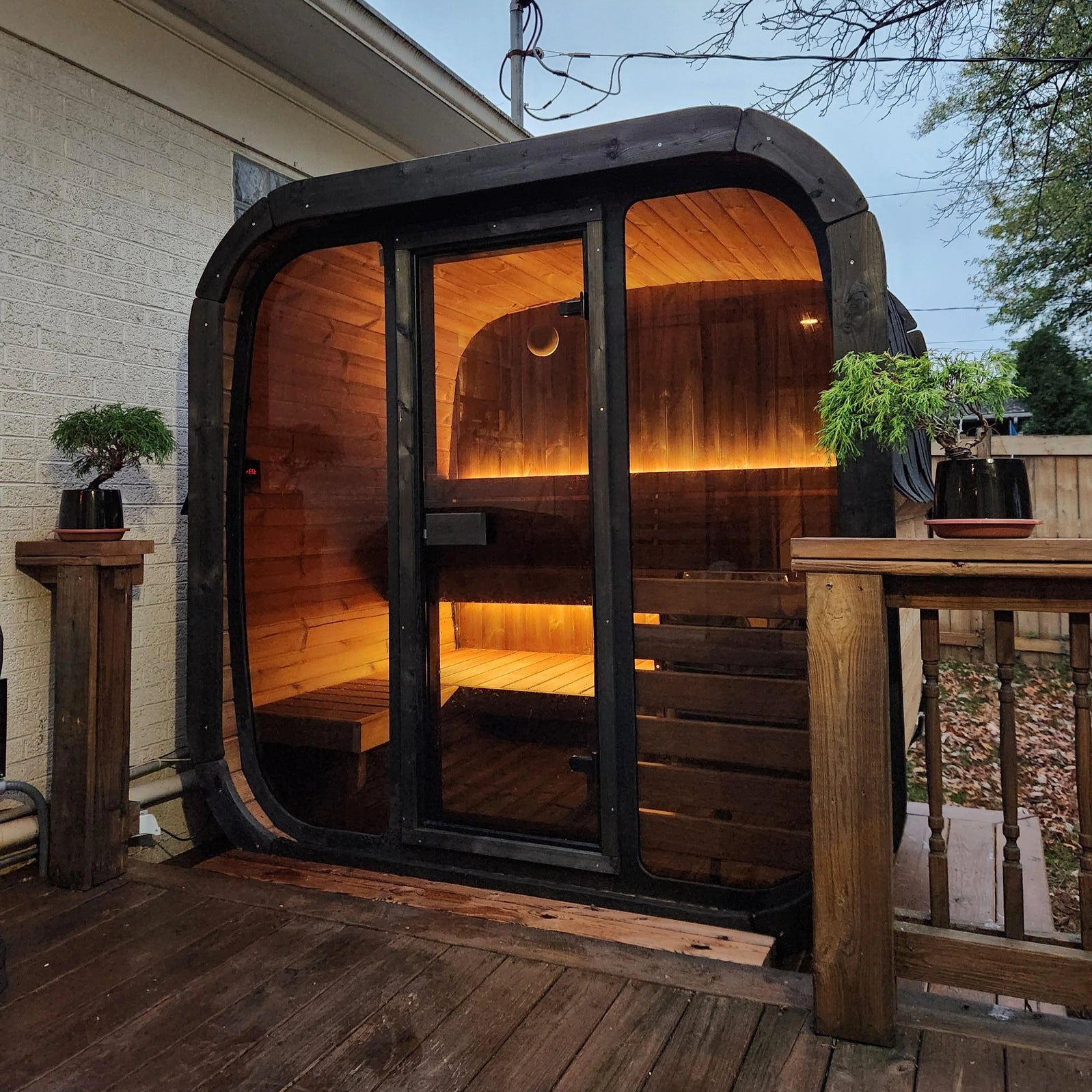

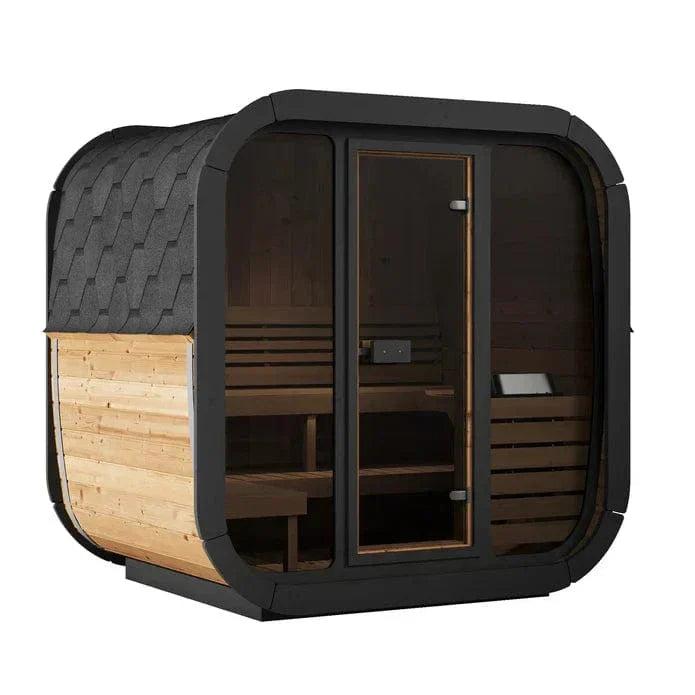

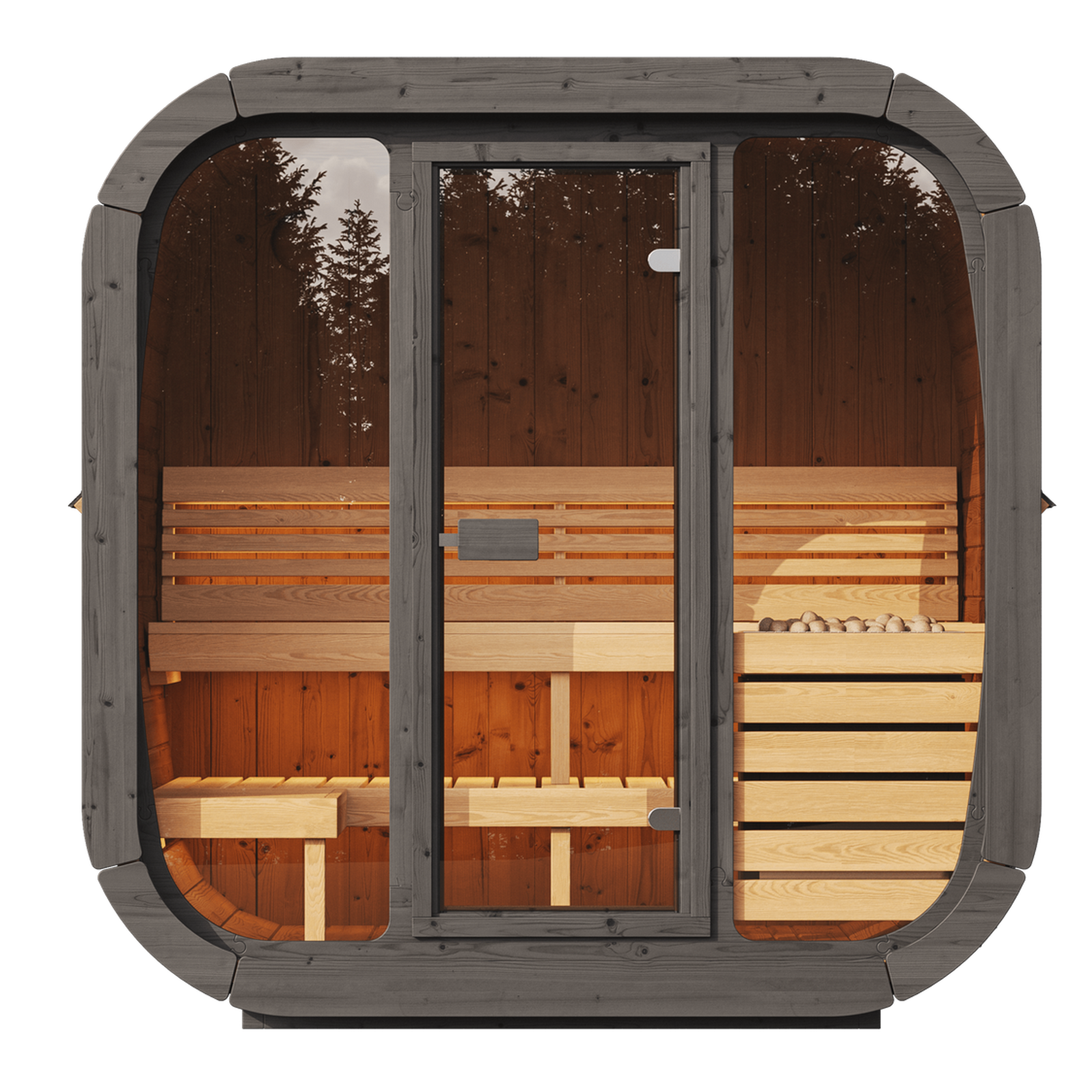

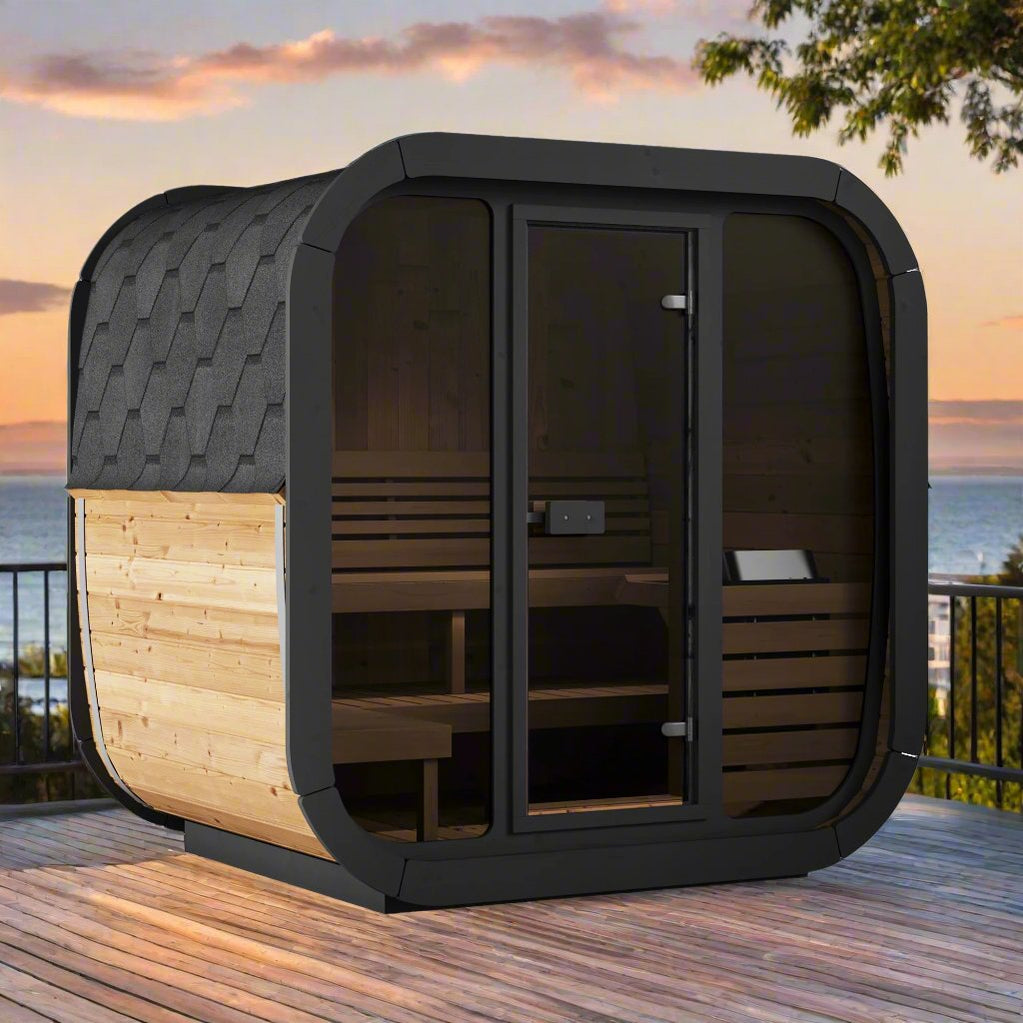

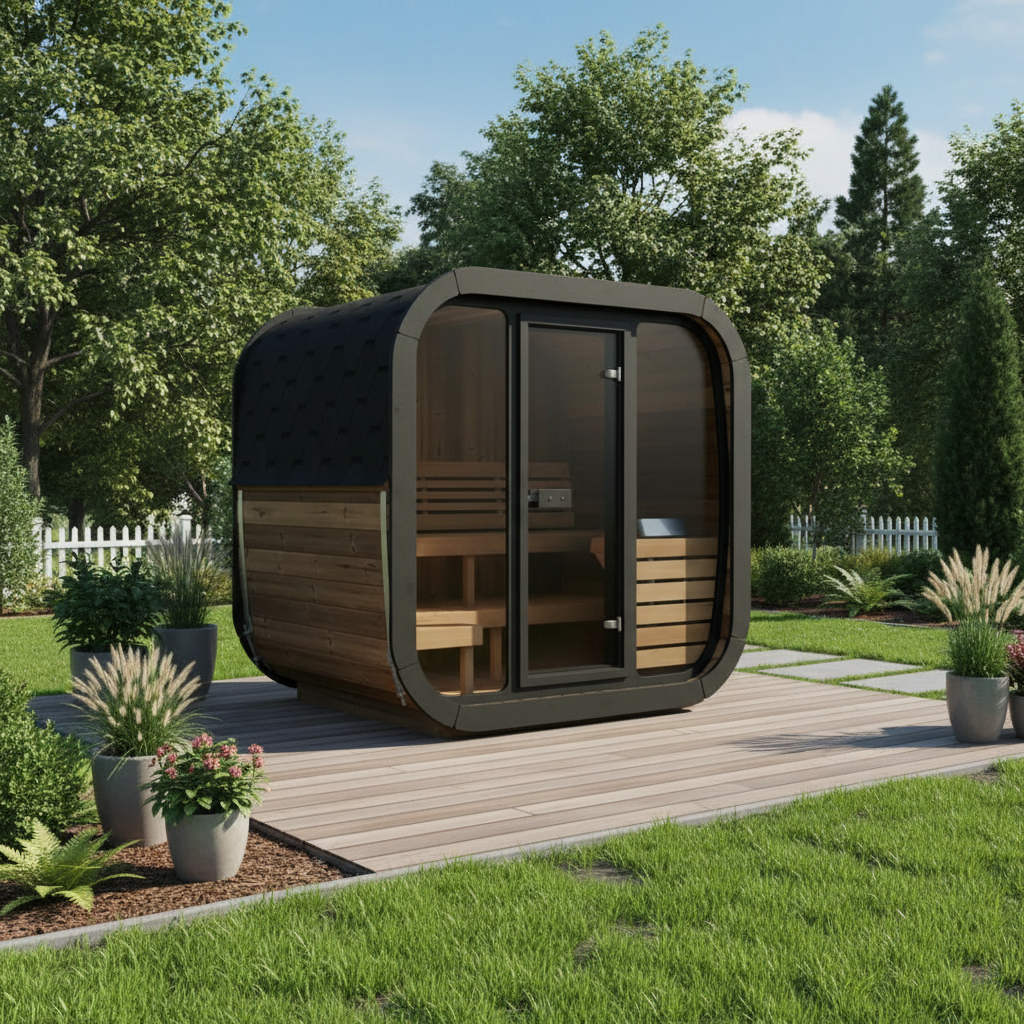

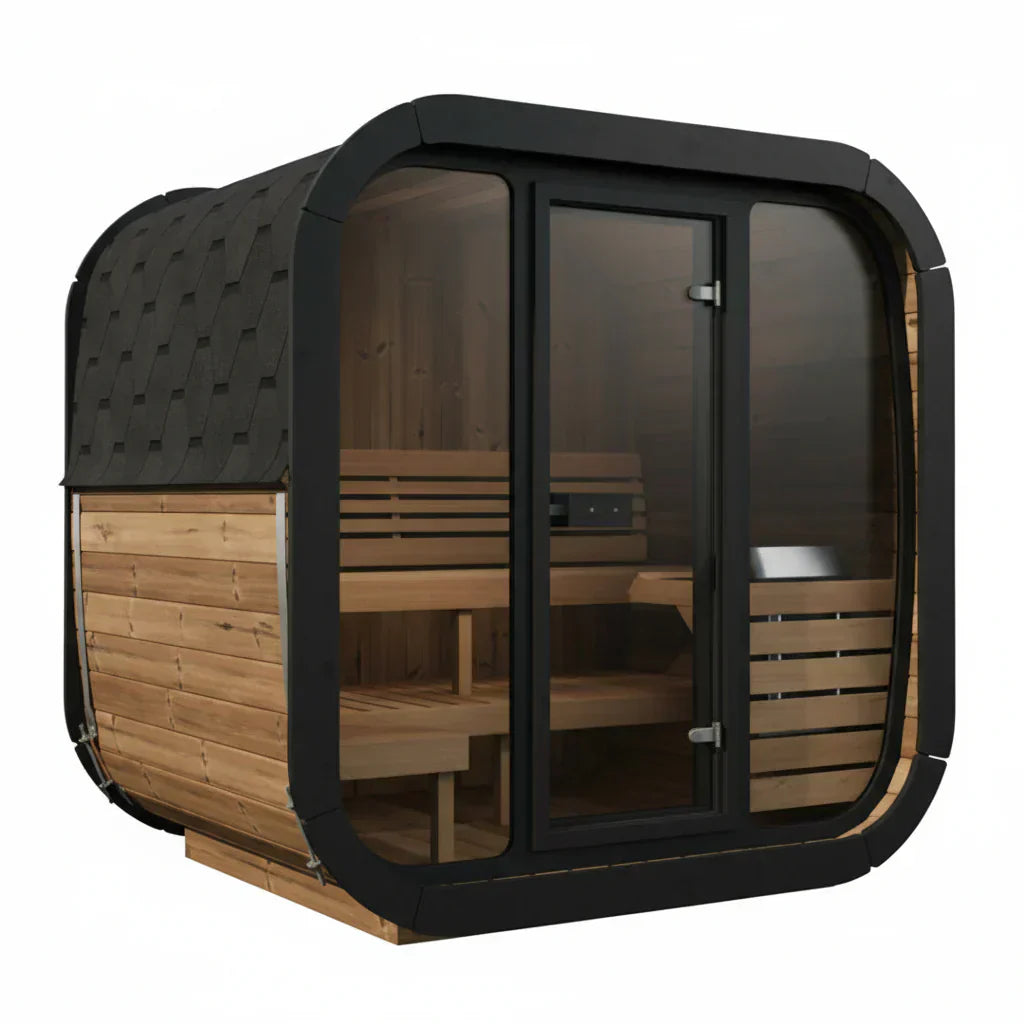

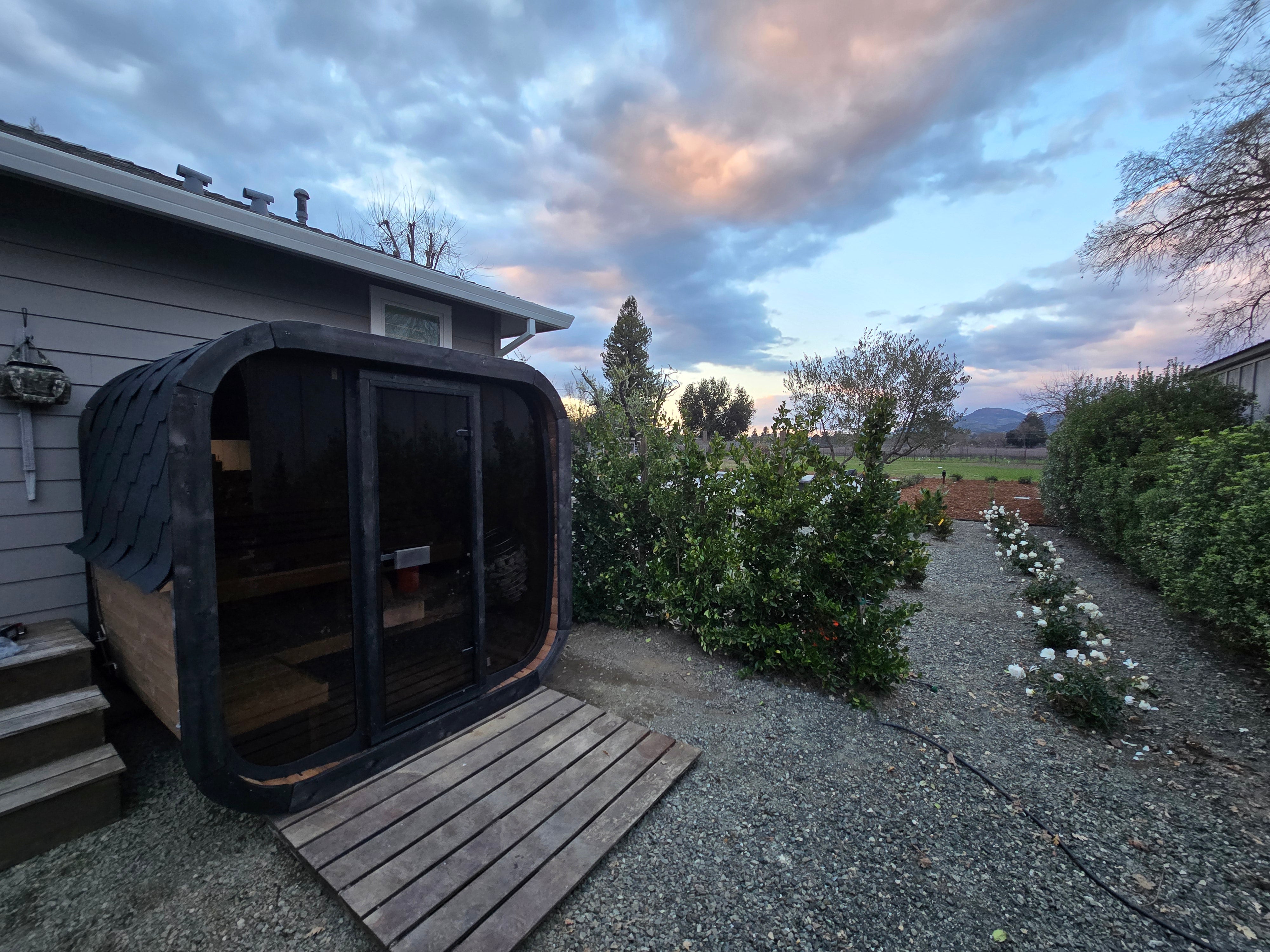

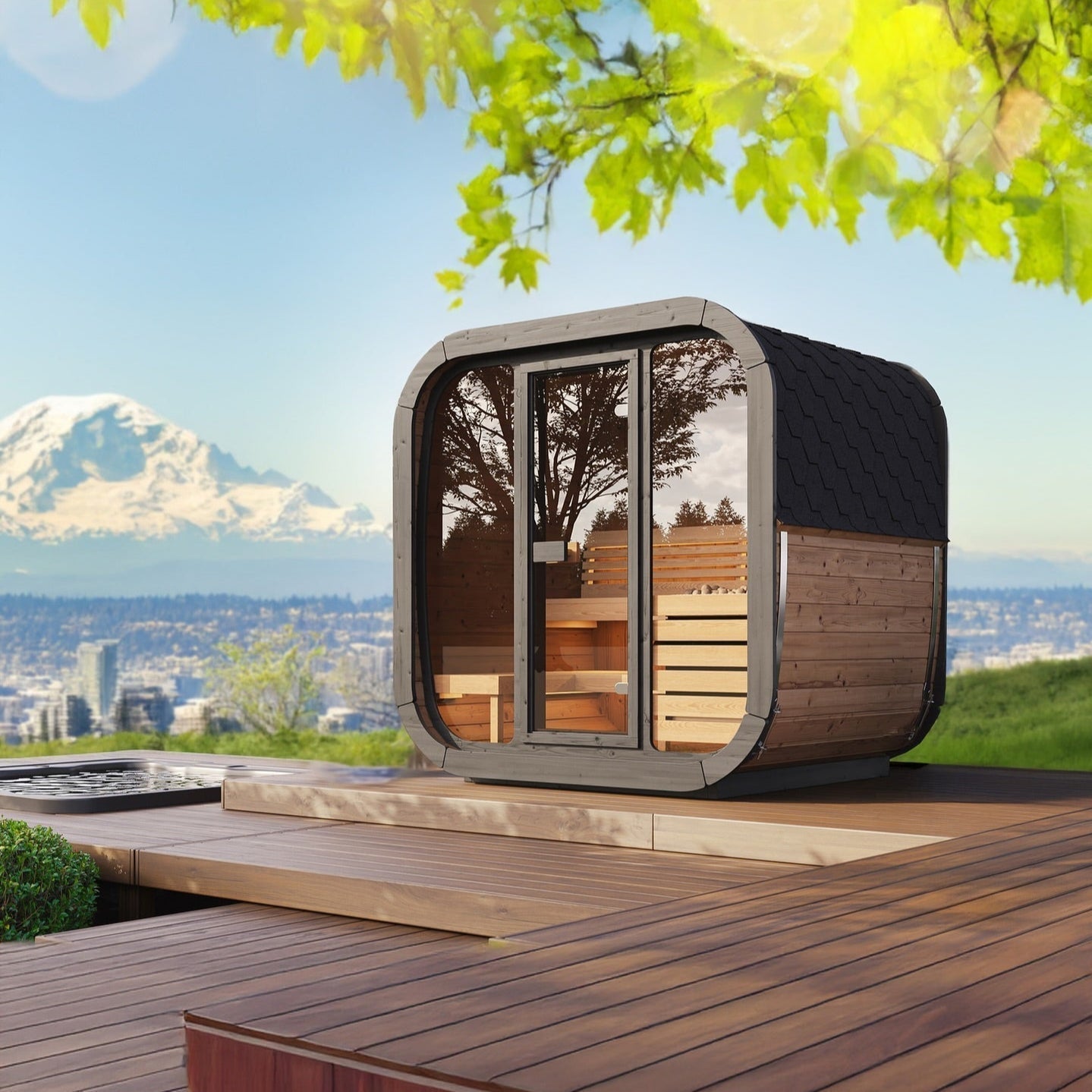

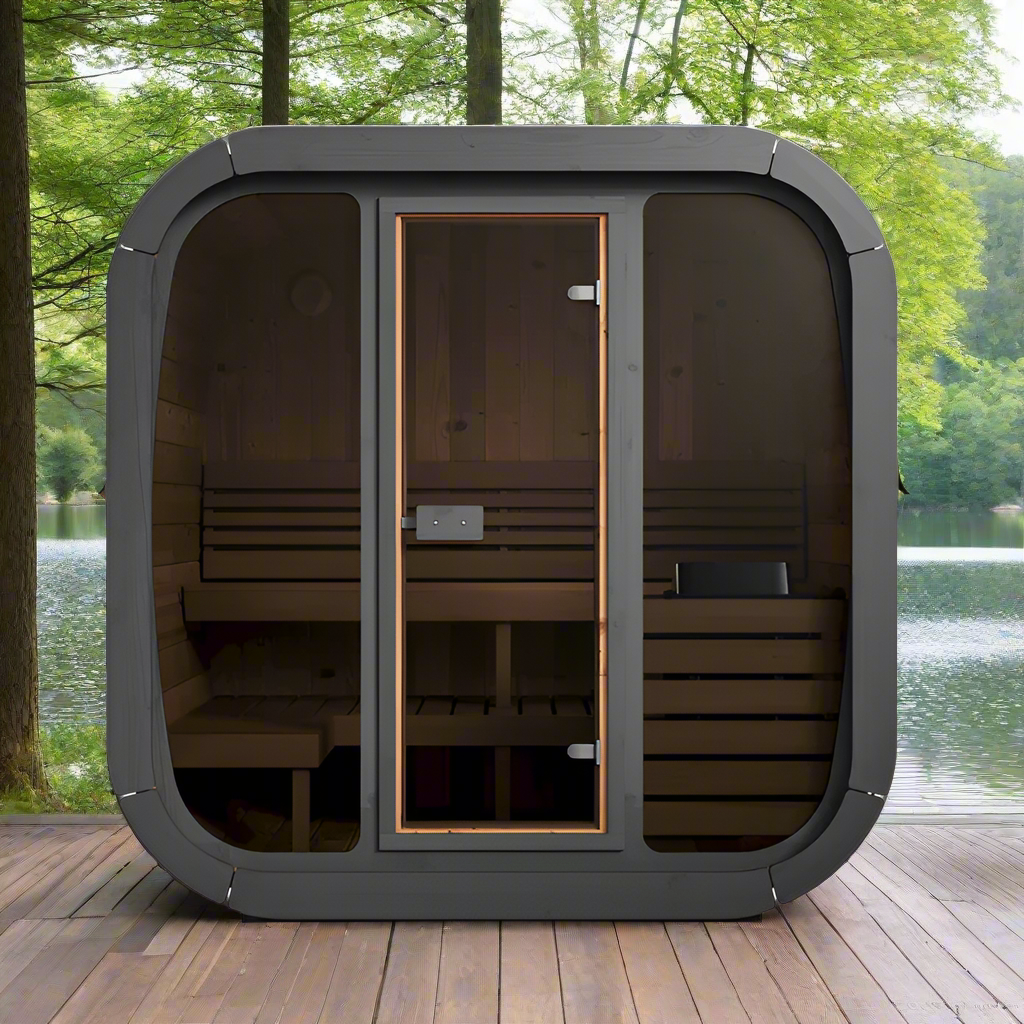

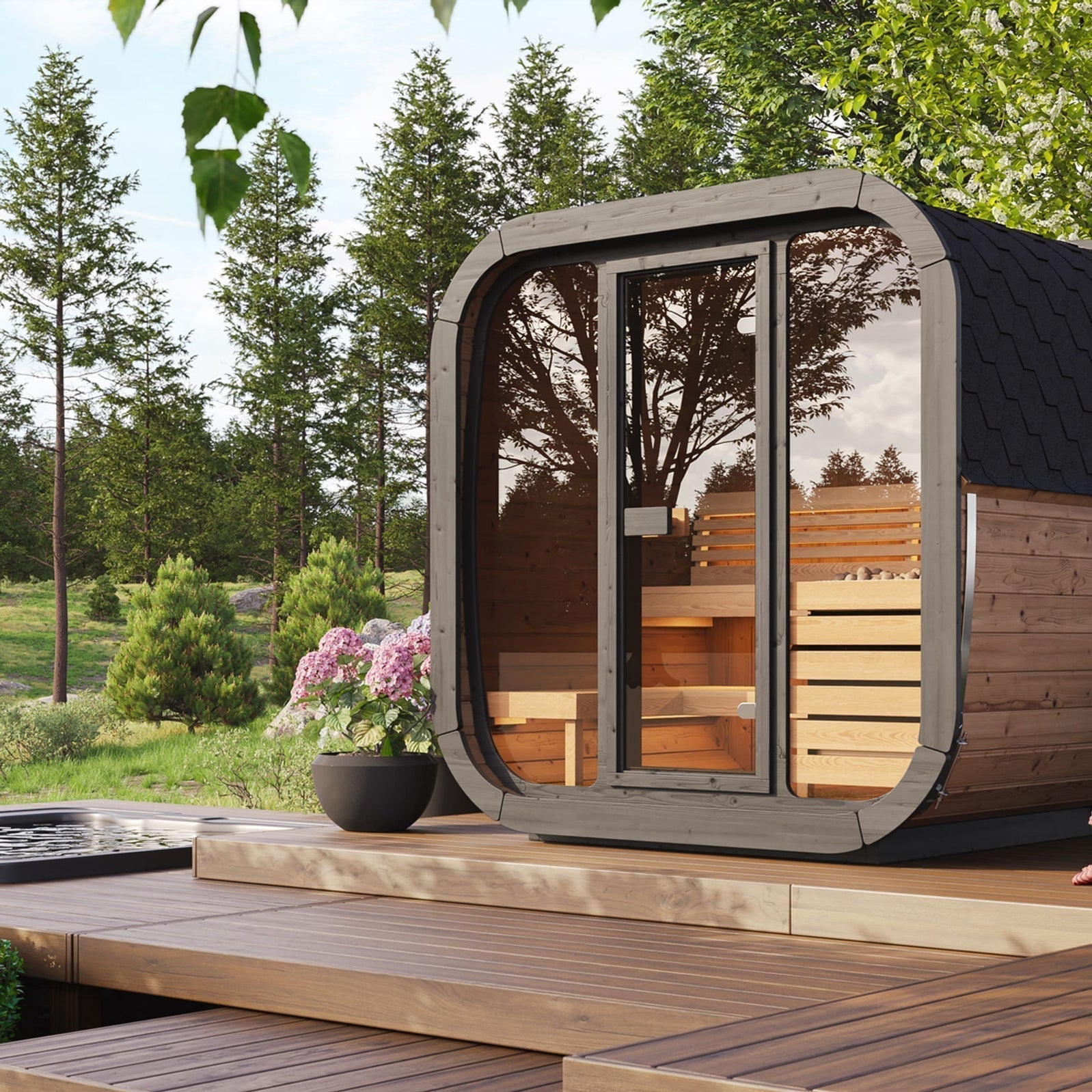

The SaunaLife Model CL5G Outdoor Sauna Kit combines a modern cube design with a spacious interior for up to four people. Its full bronze tempered glass front provides an open view of the outdoors, while the Thermo-Spruce exterior and Thermo-Aspen interior provide durable materials for outdoor sauna use.

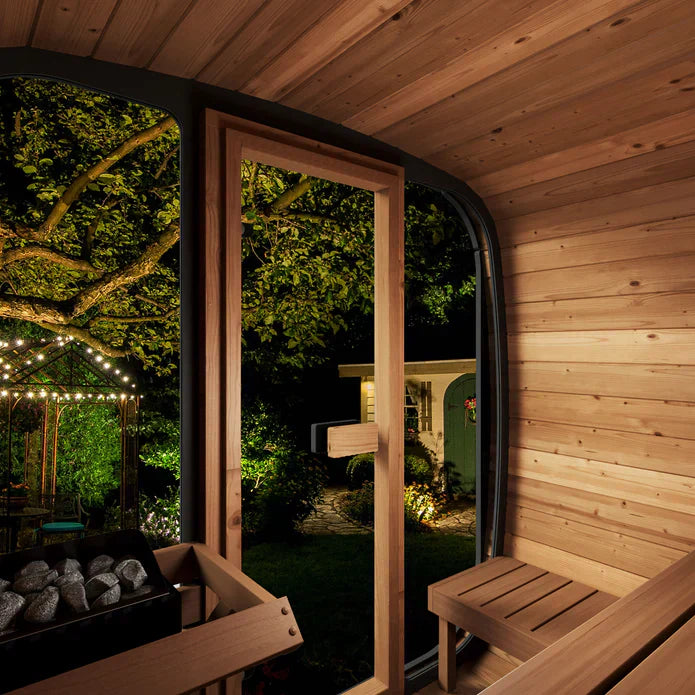

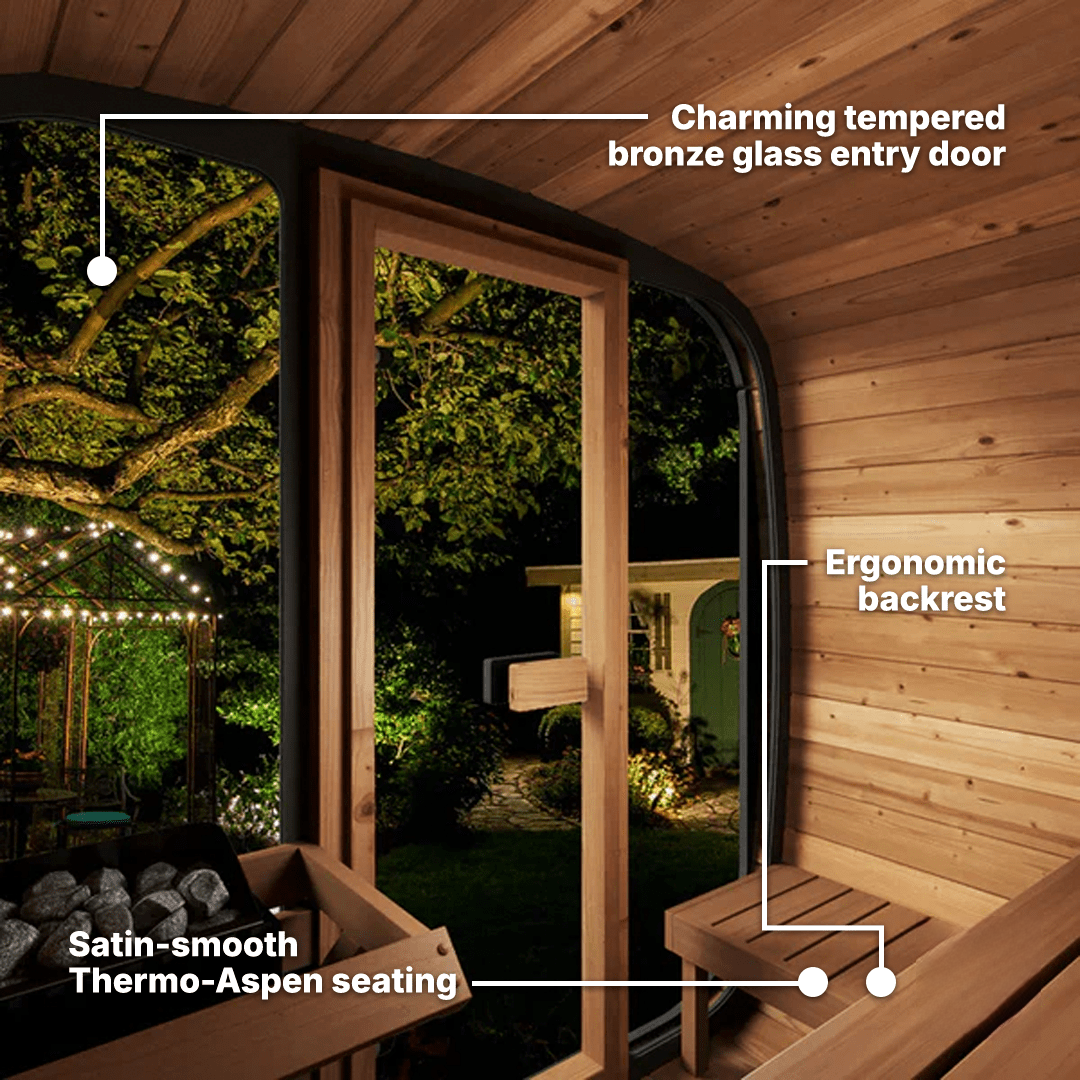

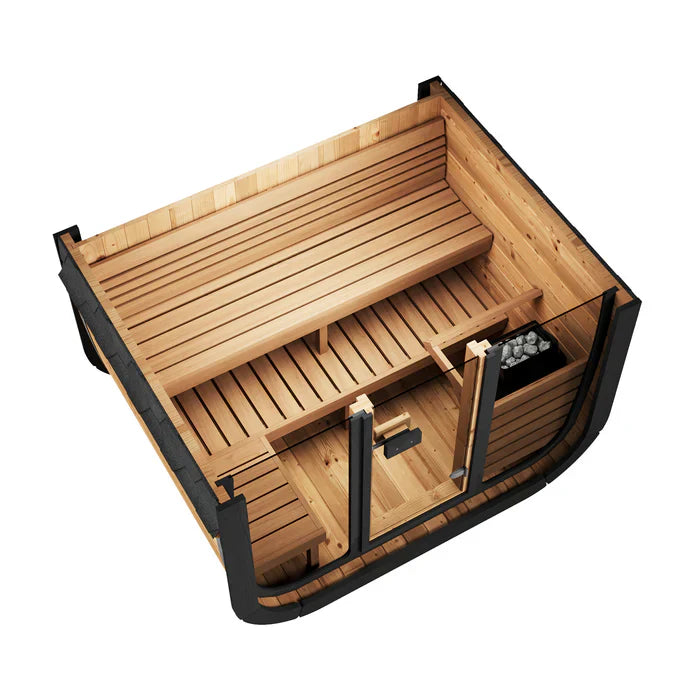

The sauna features an ergonomically designed interior with contoured seating surfaces and arched Thermo-Aspen backrests. The layout is designed to support airflow circulation, while the large glass front allows natural light into the sauna.

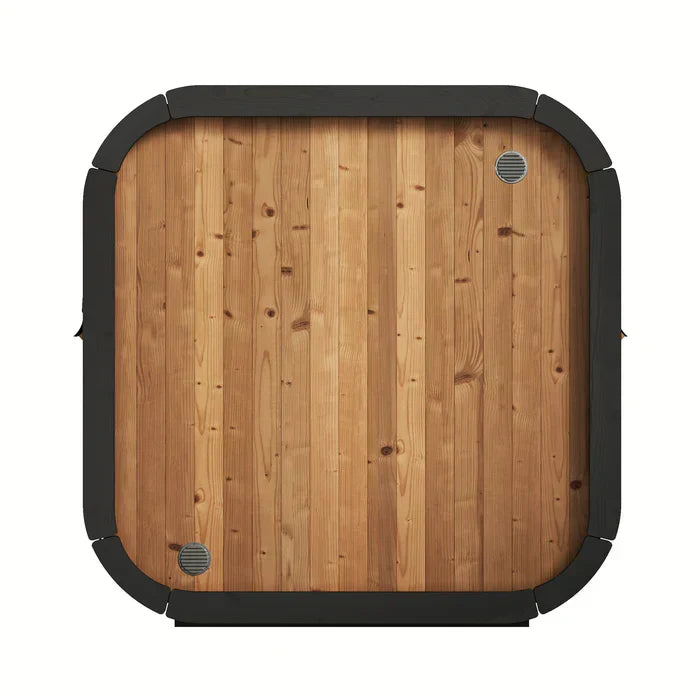

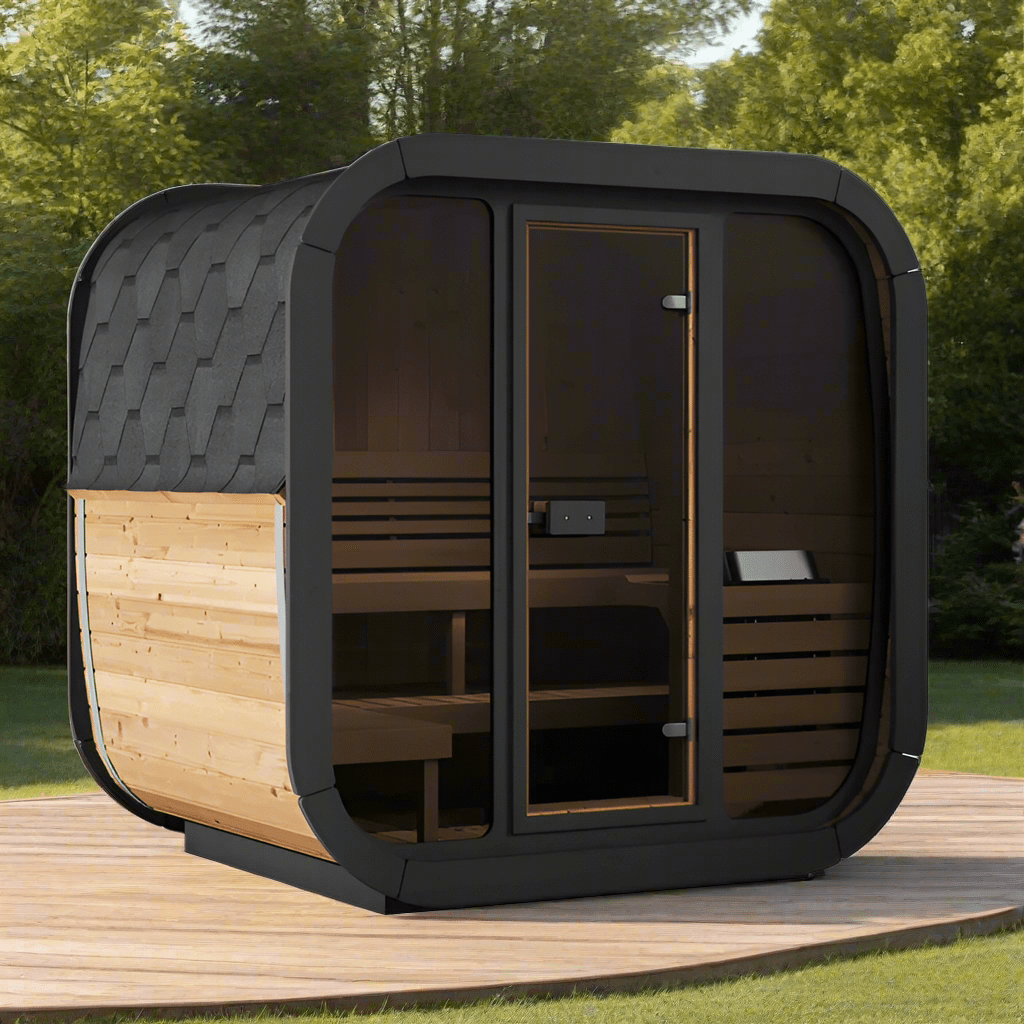

The exterior is constructed from thermally treated Thermo-Spruce with 42 mm thick walls and 28 mm front and back wall components. A shingle roof with fascia and drip rails provides weather protection, while the 8 mm tempered bronze glass front adds a durable glass element to the design.
The CL5G is a DIY sauna kit designed for assembly in approximately one day. It includes Thermo-Aspen benches and backrests, a heater guard, installation hardware, and a white LED light bar system with Wi-Fi app control.
Key Features
- Seats up to 4 people
- Modern Cube-Series outdoor sauna design
- Thermo-Spruce exterior construction
- 42 mm Thermo-Spruce wall construction
- 28 mm Thermo-Spruce front and back wall components
- Full bronze tempered glass front
- 8 mm tempered bronze glass
- Knotless Thermo-Aspen benches and backrests
- Ergonomic backrest design
- Engineered to support airflow circulation

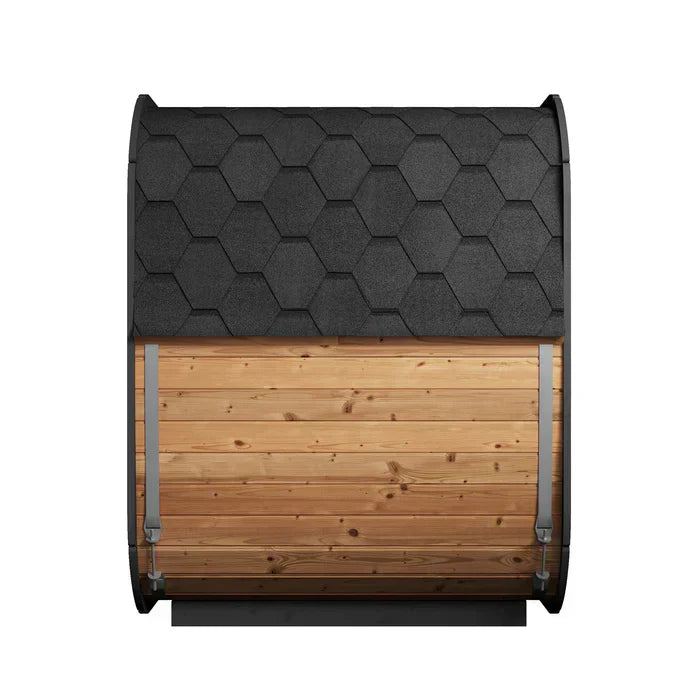

- Shingle roof with fascia board and drip rails
- White LED light bar with Wi-Fi app control
- 24V DC low-voltage LED lighting system
- DIY kit designed for assembly in approximately one day
- Designed by SaunaLife and handcrafted in Northern Europe
Thermo-Spruce Construction

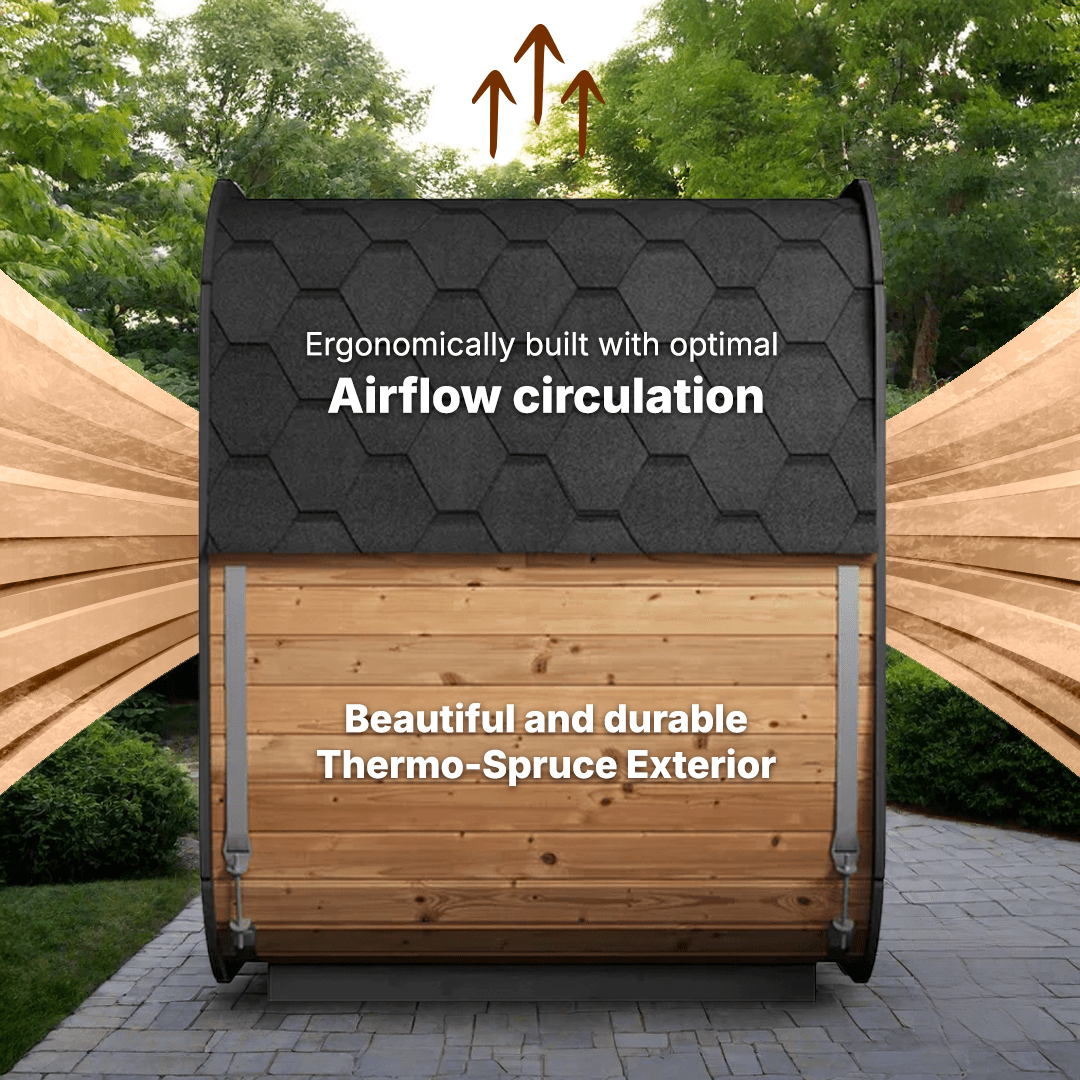

The exterior of the CL5G is made from thermally treated Thermo-Spruce. The material provides increased durability, dimensional stability, strength, and resistance to decay and pests. The thermally treated wood also has a darker appearance and requires relatively low maintenance.
The interior benches and backrests are made from knotless Thermo-Aspen. The satin-smooth surface is designed to remain comfortable during sauna use.
Specifications
| Specification | Details |
|---|---|
| Model | CL5G |
| Capacity | Up to 4 people |
| Exterior Dimensions | 80.7" W x 63" D x 82.7" H |
| Interior Dimensions | 77.2" W x 55.1" D x 74.8" H |
| Weight | 1,680 lbs |
| Wall and Ceiling Material | Thermo-Spruce |
| Wall Thickness | 42 mm Thermo-Spruce |
| Front and Back Wall | 28 mm Thermo-Spruce |
| Bench and Backrest Material | Knotless Thermo-Aspen |
| Door Dimensions | 23.2" W x 66.5" H |
| Door Glass | 8 mm Tempered Bronze Glass |
| Door Handle | Square Wood Handle |
| Roof | Shingle Roof |
| Bench Depth | Top 17.7" / Lower 31.1" / Side 23.6" |
| Bench Dimensions | Back Wall 76" / Lower 73.2" / Side 17.3" |
| Glass Style | Tempered Bronze |
Package Contents
| Included Item | Details |
|---|---|
| Sauna Kit | SaunaLife Model CL5G Outdoor Home Sauna Kit |
| Walls | Thermo-Spruce walls, 42 mm |
| Front and Back Wall | Thermo-Spruce, 28 mm |
| Front Glass | Tempered bronze front glass, 8 mm |
| Bench | Ergonomic Thermo-Aspen sauna bench |
| Backrest | Ergonomic Thermo-Aspen backrest |
| Roof | Roof shingles |
| Fascia | Fascia board |
| Heater Guard | Included |
| Installation Hardware | Montage kit |
| Exterior Details | Painted black front details |
| Documentation | Installation instructions |
White LED Light Bar System with Wi-Fi App
The CL5G includes a white LED light bar system with Wi-Fi app-based operation. The system uses low-voltage 24V DC operation and includes a wireless handheld remote, mounting cradle, power supply, driver, and 30-foot light cable.
| Feature | Details |
|---|---|
| Light Bar | White LED light bar |
| Operation | Wi-Fi and app-based operation |
| Remote | Wireless handheld remote with mounting cradle |
| Power Supply | 90W power supply |
| Driver | LED driver |
| Cable | 30' light cable |
| Mounting Clips | 3 articulating clips and 3 flush clips |
| Connections | Water and heat-rated IP67 LED and wire connections |
| Voltage | 24V DC |
| Expansion | Expandable to control up to four white LED light sources |
Heater and Electrical
The sauna heater is purchased separately. SaunaLife saunas require a 220-240V hardwired connection with a dedicated breaker. Dedicated 120V power is also required for accessories such as lighting and controls. Confirm the exact amperage and wire size with a qualified electrician based on the selected heater.
