Harvia Virta HL110E 10.5kW Electric Sauna Heater Package with Xenio Control & Sauna Stones
Voltage & Phase
Controller Package
Harvia Virta HL110E 11kW Electric Sauna Heater Package with Xenio Control & Sauna Stones
The Harvia Virta HL110E Electric Sauna Heater Package combines an 11kW electric sauna heater with a Harvia Xenio CX45 control package and Harvia sauna stones. Designed for sauna rooms from 177 to 635 cubic feet, the Virta HL110E provides consistent heat and allows water to be poured over the stones for a traditional sauna experience.
Designed and engineered in Finland, the Virta HL110E features a durable steel construction and a floor-mounted design. Its heating elements are separated from the stones, helping protect the elements while making maintenance easier.

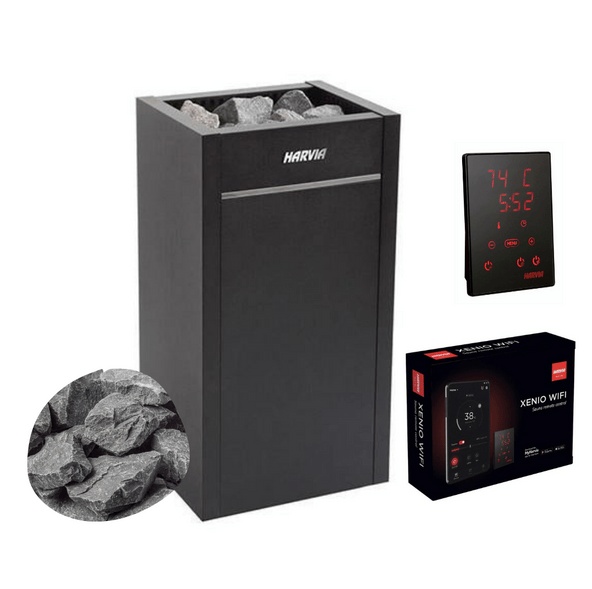

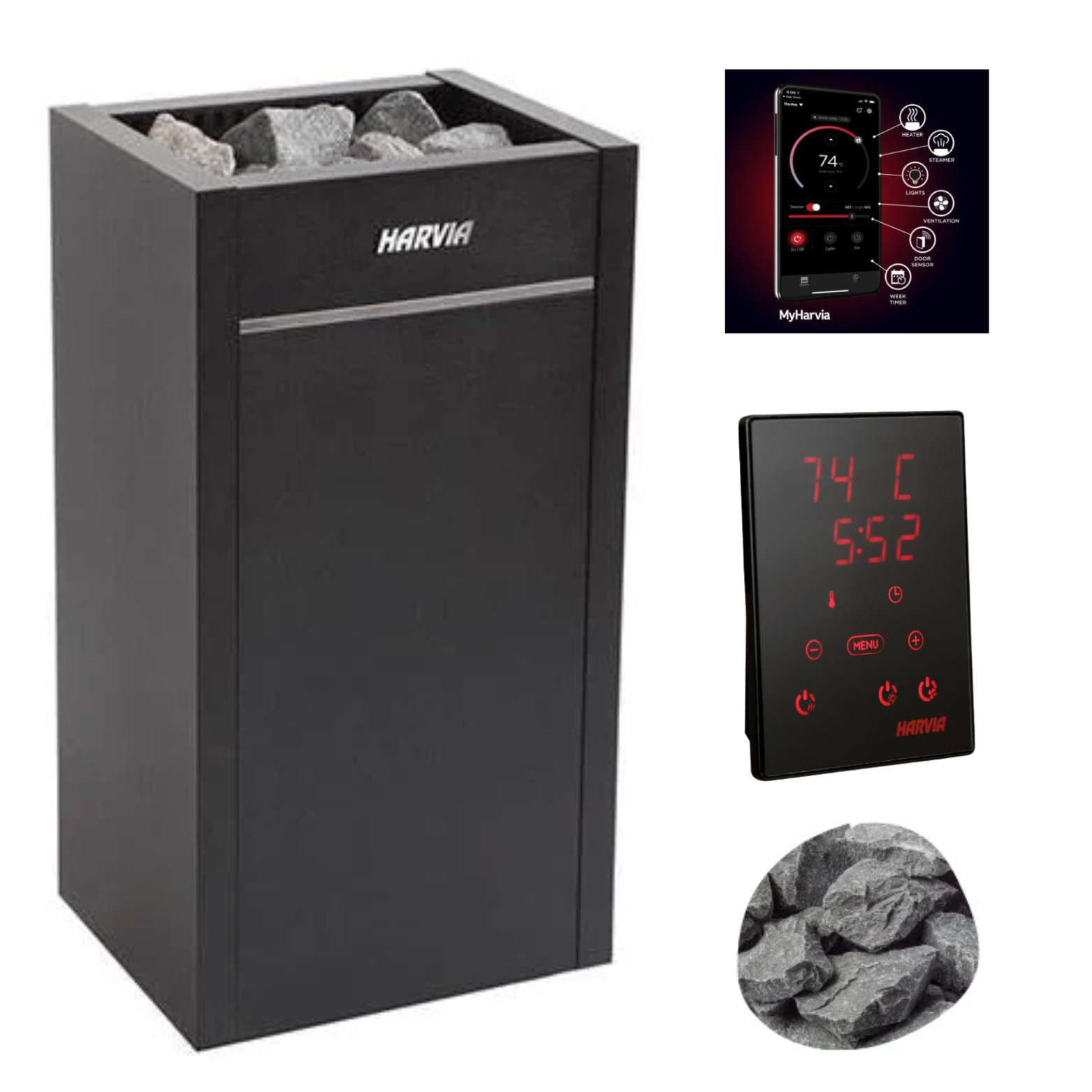

Complete Sauna Heater Package
This package includes the components needed to operate the sauna heater:
| Component | Included item |
|---|---|
| 1 | Harvia Virta HL110E 11kW Electric Sauna Heater |
| 2 | Harvia Xenio CX45 Sauna Control Package |
| 3 | Harvia Sauna Stones |
| 4 | Optional: Harvia Xenio WiFi Remote Control |

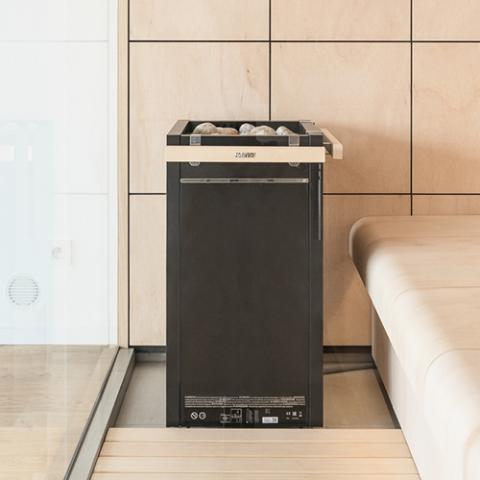

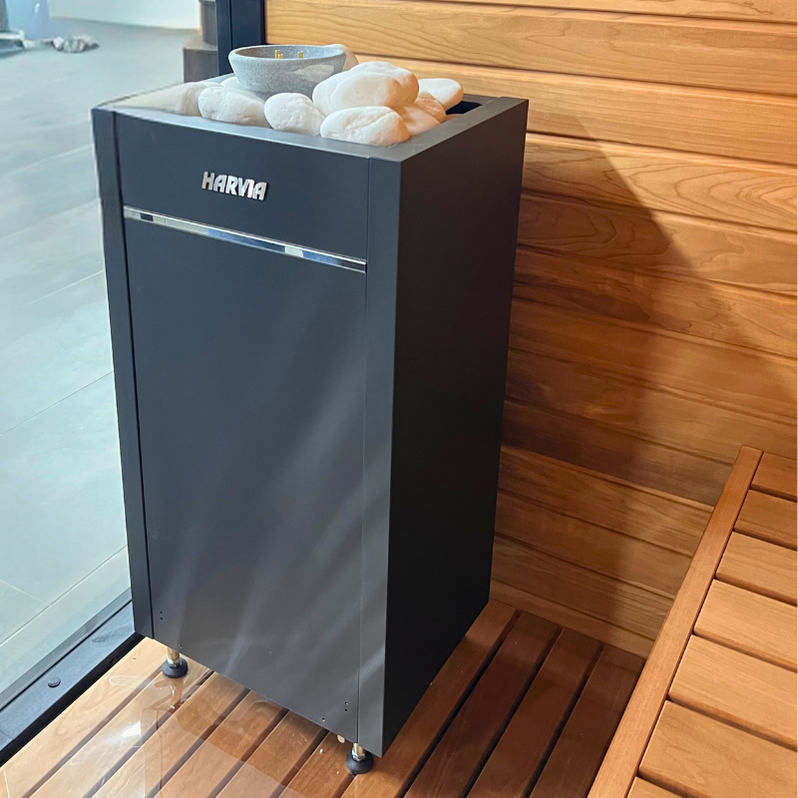

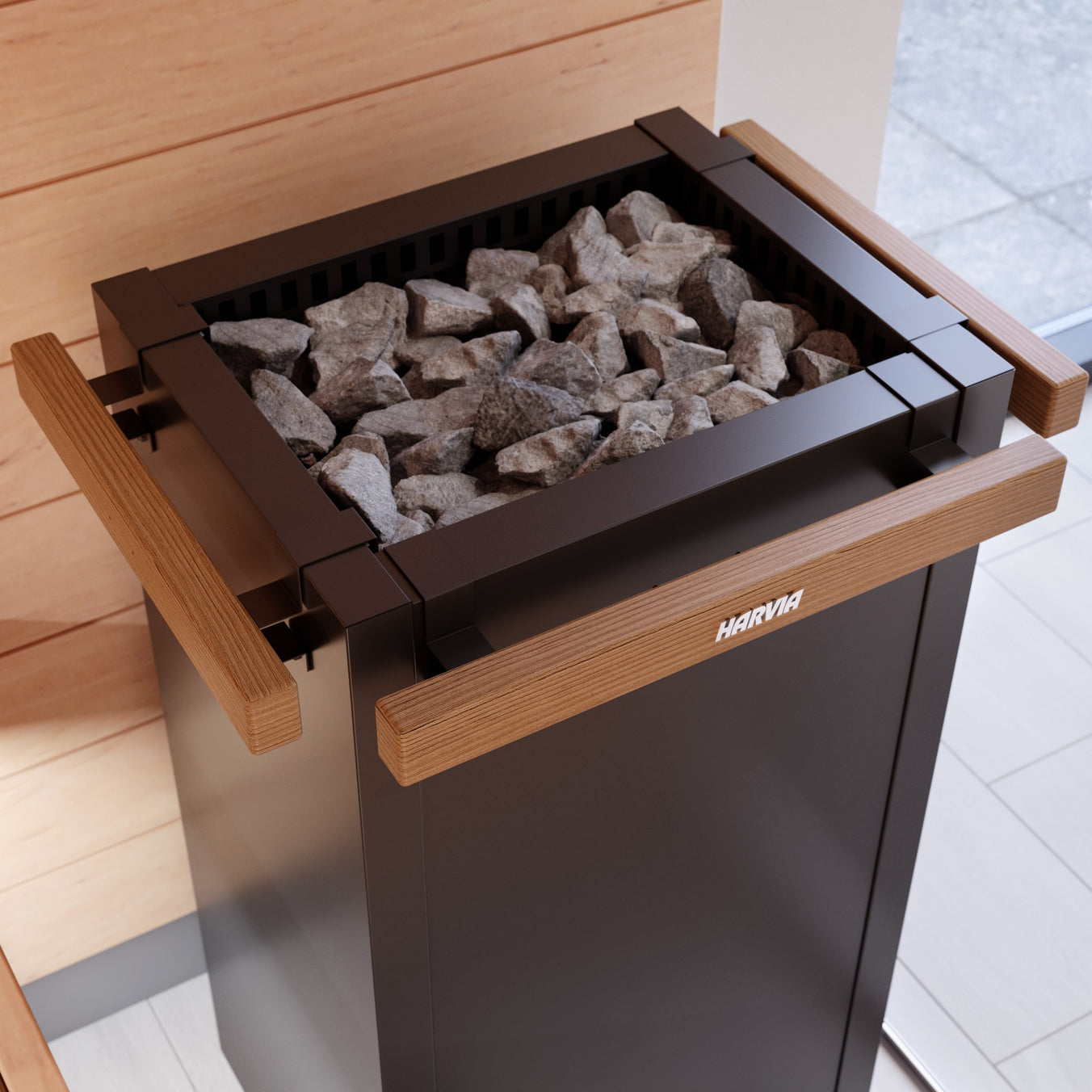

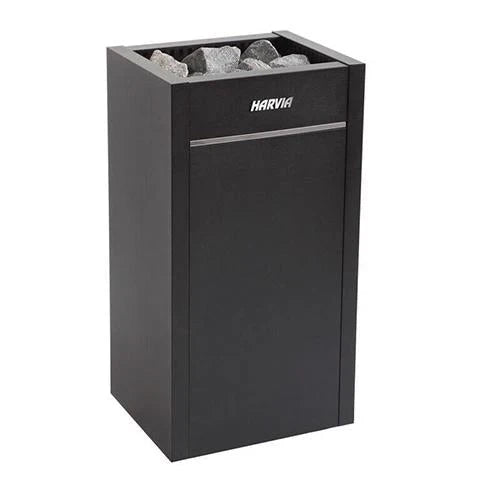

Harvia Virta HL110E Sauna Heater
The Harvia Virta HL110E is an 11kW electric sauna heater designed for sauna rooms measuring 177 to 635 cubic feet. Its floor-mounted design provides flexible installation in a sauna room while the separate control system allows convenient adjustment of the sauna temperature and operating time.
The heater uses a durable steel construction with heating elements positioned separately from the sauna stones. The Virta design provides easy access to the heating elements for maintenance and service.
Key Features
| Feature | Details |
|---|---|
| Power | 11kW electric sauna heater |
| Model | HL11U1UL / Virta HL110E |
| Room size | For sauna rooms from 177 to 635 cu. ft. |
| Electrical | 240V, single-phase, 60 Hz |
| Construction | Steel construction |
| Heating elements | Heating elements separated from the sauna stones |
| Design | Floor-mounted vertical design |
| Installation | Vertical installation |
| Controls | Works with a separate Harvia Xenio control |
| Maintenance | Heating elements are accessible for easier maintenance and service |
| Origin | Designed, engineered, and made in Finland |
| Stone amount | 154 lbs of sauna stones |
| Stone size | 10 to 15 cm, approximately 4 to 6 inches |
| IP rating | IPX4 |
| Dimensions | 16"W × 16"D × 33"H |

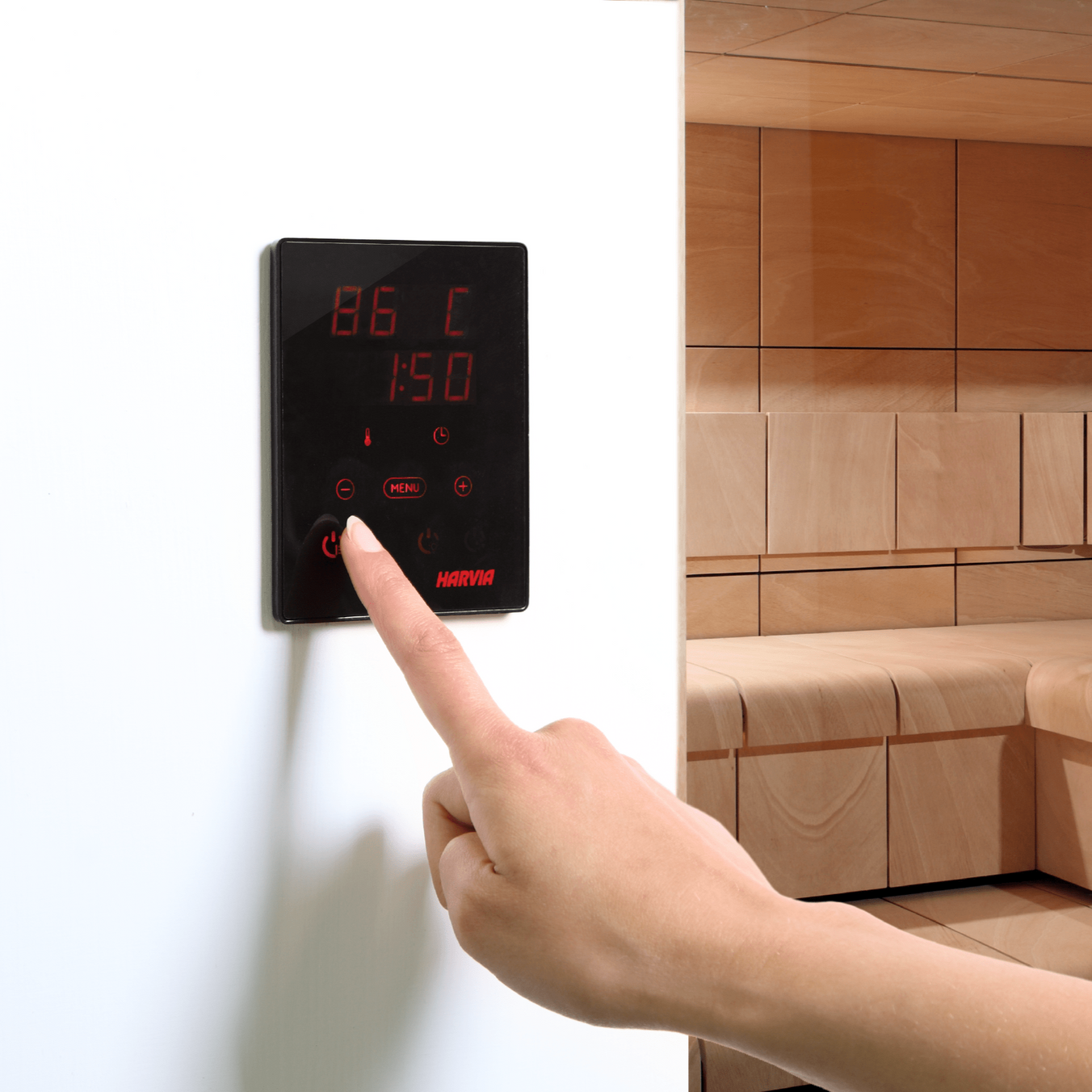

Harvia Xenio CX45 Sauna Control Package
The included Harvia Xenio CX45 control package provides convenient control over the sauna's operating time and temperature, along with connected lighting and fan functions.
The compact control panel can be installed on the sauna wall and provides easy access to the sauna's main operating settings.
Xenio CX45 Features
| Feature | Details |
|---|---|
| Heater capacity | Supports compatible Harvia heaters up to 17kW (U1) and 15kW (U3) |
| Compatibility | Compatible with selected Harvia Cilindro, Club, and Virta series heaters |
| Operating time | Controls sauna operating time |
| Temperature | Controls sauna temperature |
| Lighting | Controls connected sauna lighting |
| Fan | Controls connected sauna fan |
| Installation | Wall-mounted installation |
| Dimensions | Approximately 3.4"W × 1"D × 4.4"H |

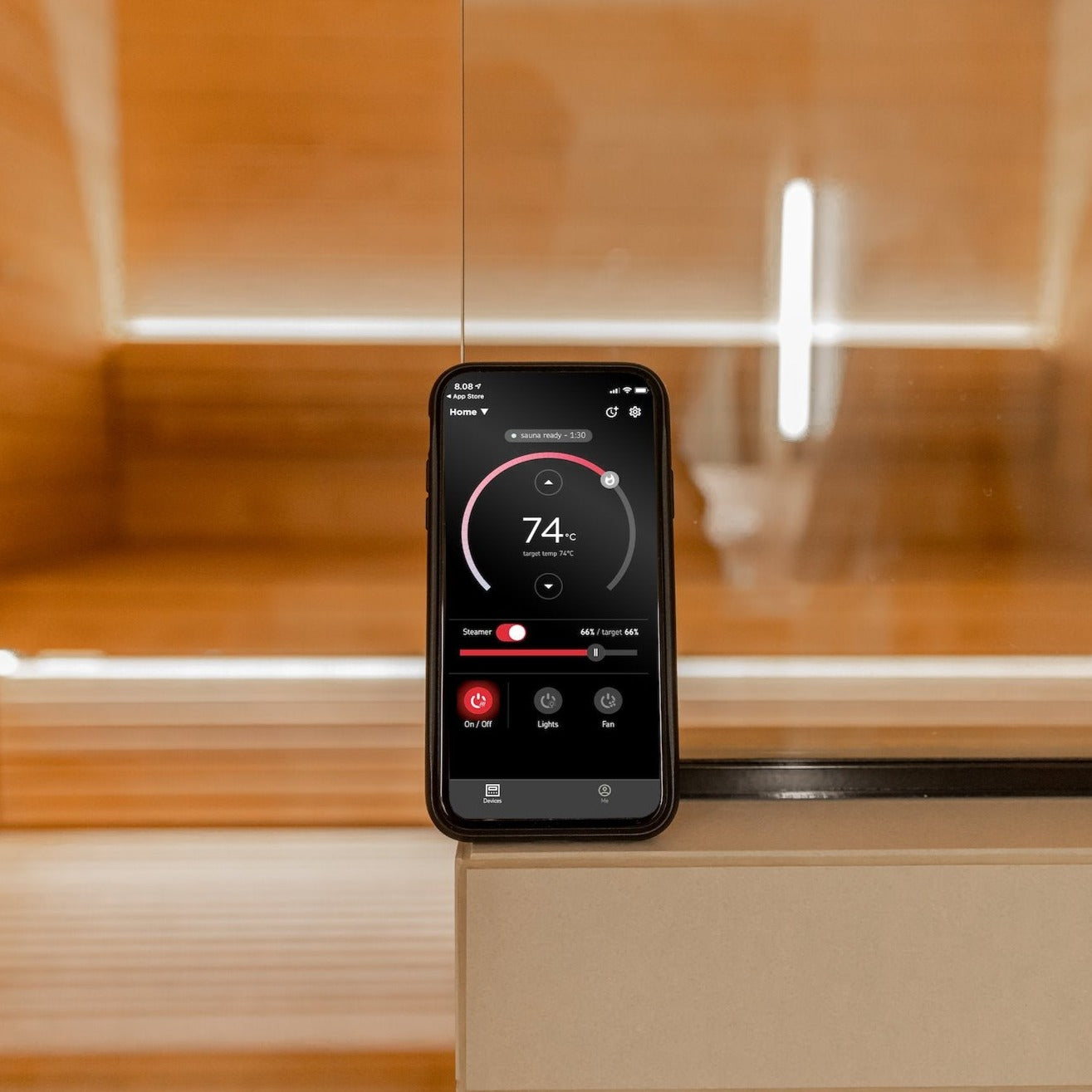

Harvia Xenio WiFi Remote Control
The optional Harvia Xenio WiFi Remote Control adds WiFi connectivity to compatible Xenio control systems and allows remote sauna control through the MyHarvia application.
Available MyHarvia functions include:
| Function | Availability |
|---|---|
| Temperature | Temperature adjustment |
| Lighting | Lighting control |
| Fan | Fan control |
| On-time | On-time feature |
| Timed start | Timed start feature |
| Scheduling | Weekly scheduling |
| Safety | Safety device option |
| Time zone | Time zone selection |
| Daylight saving | Daylight saving selection |
| Humidity | Humidity adjustment |
| Updates | Control panel updates |
The MyHarvia application can be connected to multiple compatible devices. Application availability varies by country.

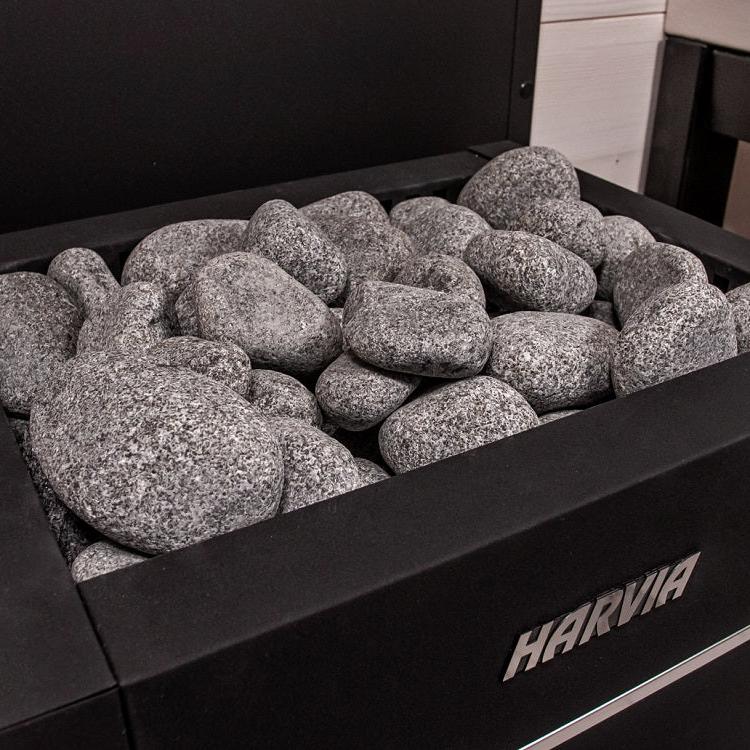

Harvia Sauna Stones
The Virta HL110E requires 154 lbs of sauna stones. The recommended stone size for this heater is 10 to 15 cm, approximately 4 to 6 inches.

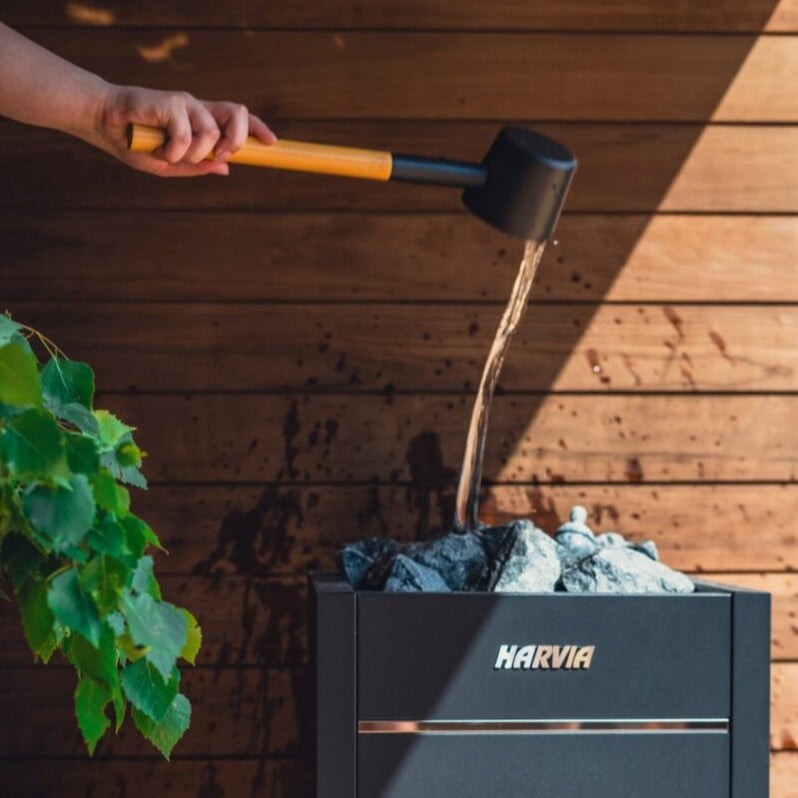

The stones are arranged within the heater around the heating elements. Proper stone placement allows water to be poured over the stones during sauna use, producing steam and adding humidity to the sauna experience.
Specifications
| Specification | Harvia Virta HL110E |
|---|---|
| Kilowatt Rating | 11 kW |
| Model | HL11U1UL / Virta HL110E |
| Primary Fuel | Electric |
| Minimum Sauna Room Volume | 177 cu. ft. |
| Maximum Sauna Room Volume | 635 cu. ft. |
| Voltage | 240V |
| Phase | 1 phase |
| Frequency | 60 Hz |
| Heater Weight | 55.1 lbs |
| Stone Amount | 154 lbs |
| Stone Size | 10 to 15 cm / approximately 4 to 6 inches |
| Width | 16" (406mm) |
| Depth | 16" (406mm) |
| Height | 33" (838mm) |
| IP Rating | IPX4 |
Installation & Safety
Installation should follow the manufacturer's installation instructions and required safety clearances. The Harvia Virta HL110E is designed for vertical installation and requires a compatible separate control unit. Refer to the supplied Harvia Virta and Xenio manuals for complete installation, electrical, clearance, and operating requirements.
