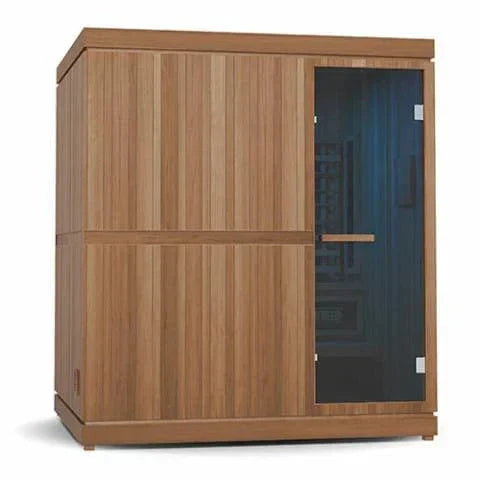

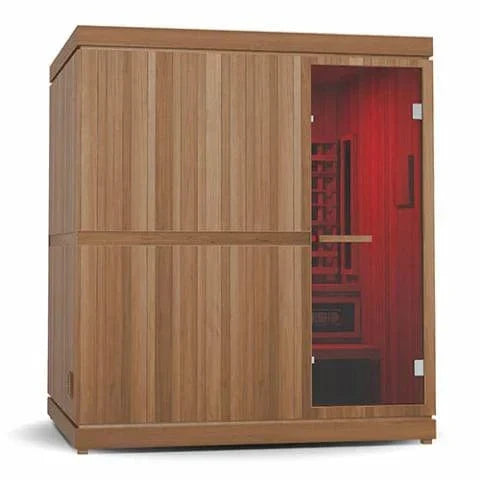

Finnmark FD-5 Trinity XL 4-Person Infrared & Traditional Hybrid Sauna

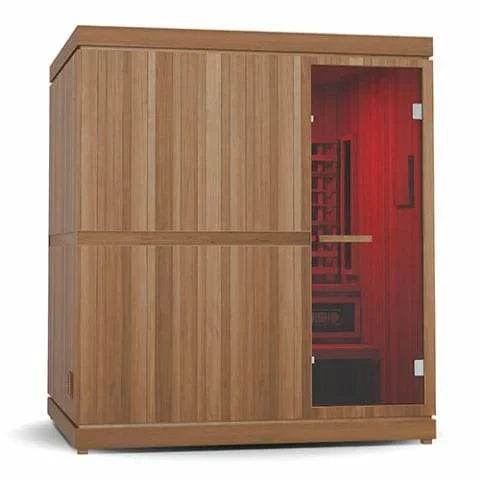

Finnmark FD-5 Trinity XL Infrared and Traditional 4-Person Hybrid Sauna

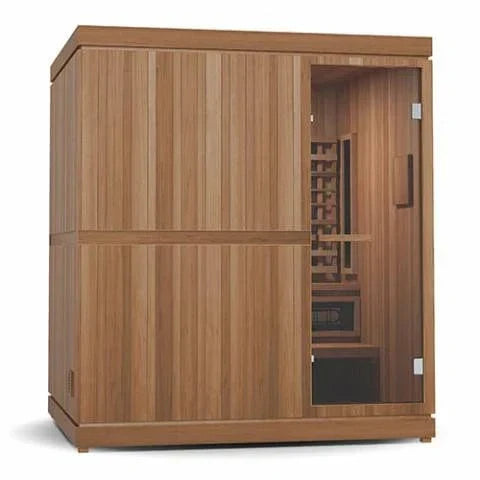

The Finnmark FD-5 Trinity XL combines full spectrum infrared heating, traditional sauna heat, and red light in one spacious 4-person sauna. The system features UL Listed Spectrum Plus™ infrared heaters together with Carbon 360° infrared panels and a Harvia KIP 4.5kW traditional sauna heater. The traditional heater uses sauna stones that can be sprinkled with water to create steam, giving you the option to enjoy both infrared and traditional sauna sessions in the same unit.
3-in-1 Infrared and Traditional Sauna System

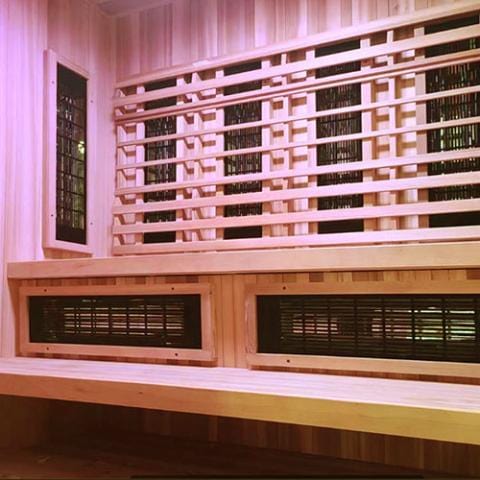

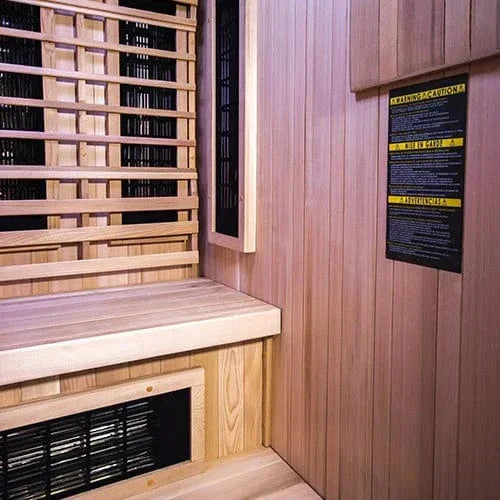

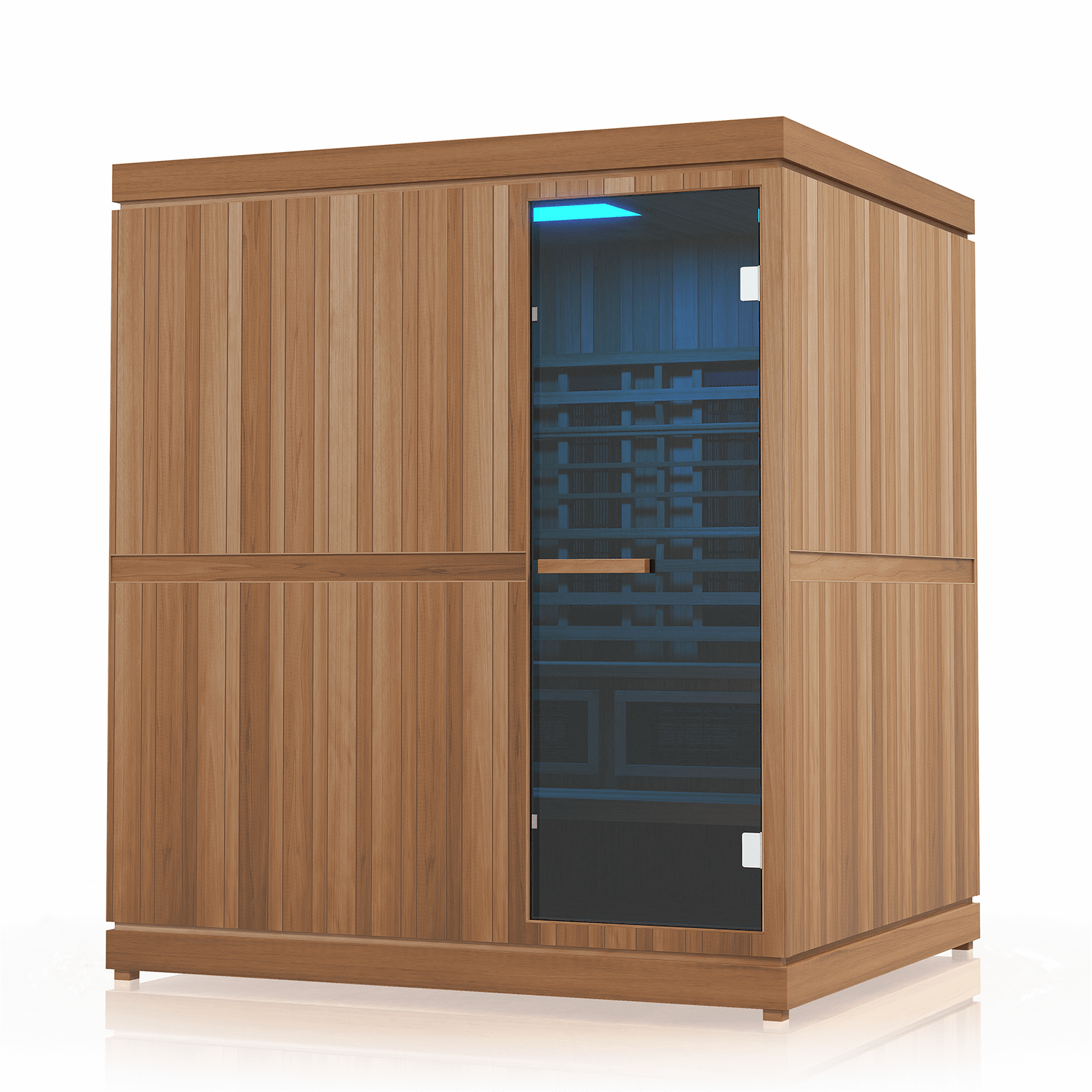

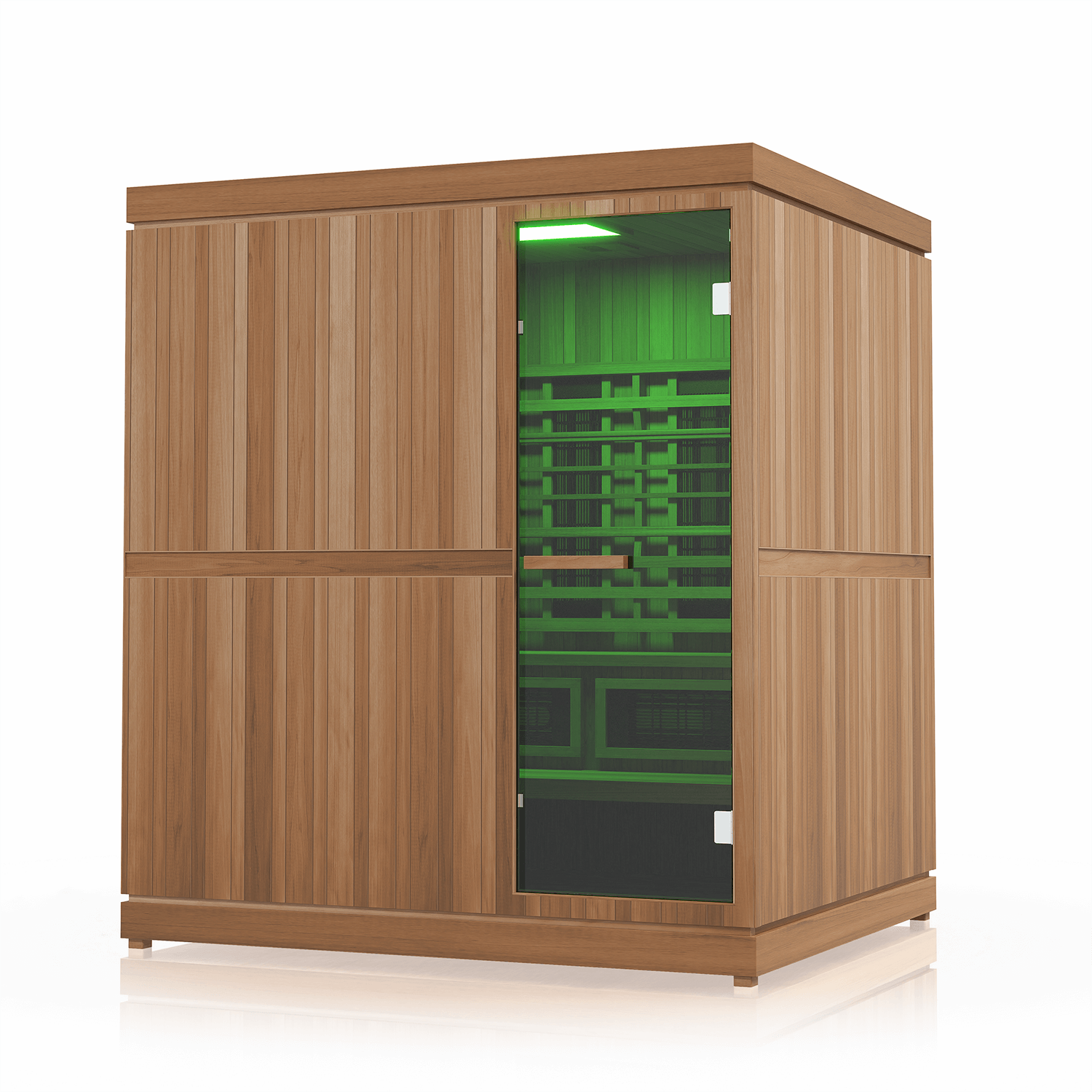

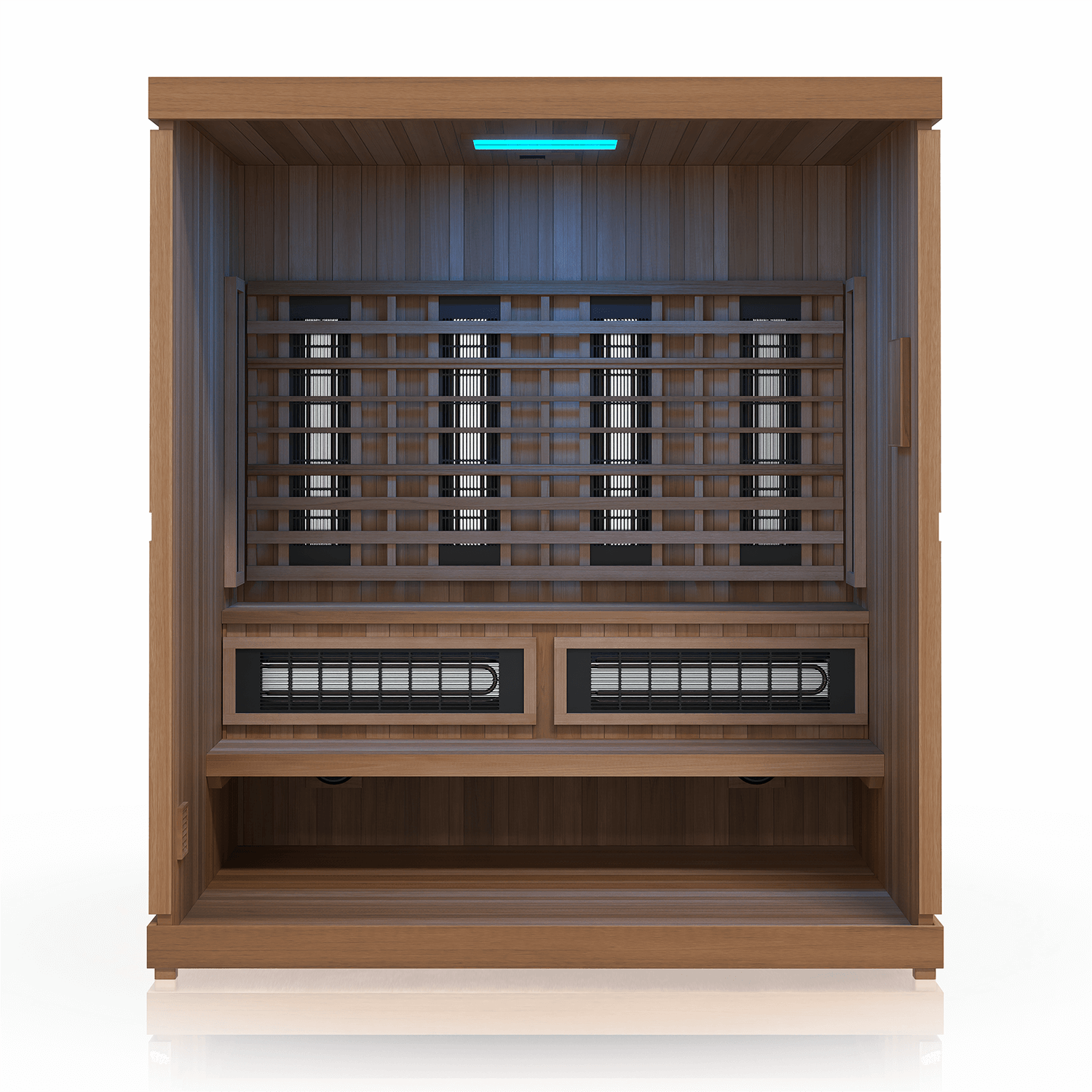

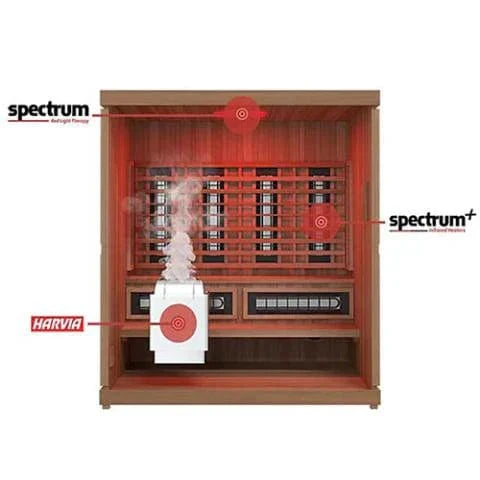

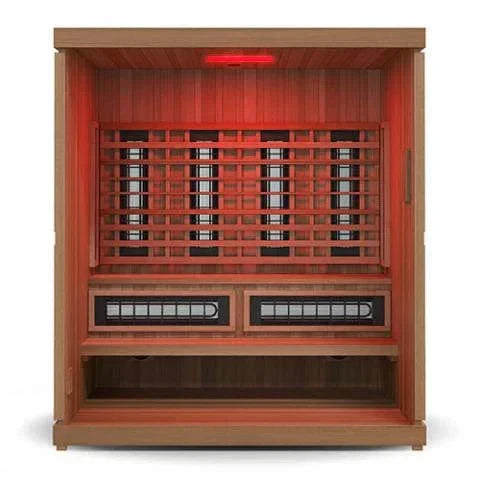

The FD-5 Trinity XL brings together three sauna technologies in one integrated design: infrared heating, traditional sauna heating, and a 650nm red light panel with chromotherapy. The infrared system combines Spectrum Plus™ short-wave infrared heaters with Carbon 360° infrared heating panels, while the Harvia KIP traditional heater provides conventional sauna heat and allows water to be poured over the sauna stones.
The infrared system is rated at 2700W and can reach up to 170°F. The traditional Harvia heater is rated at 4.5kW and can reach up to 190°F.
Western Canadian Cedar and Thermal Plus™ Aspen
The FD-5 features an A-Grade Western Canadian Cedar interior and a Thermal Plus™ Aspen exterior. The cedar interior is naturally antimicrobial, while the heat-treated Aspen exterior provides a stable and durable exterior construction. The sauna uses a premium double-wall construction designed for consistent performance.
Features
| Feature | Details |
|---|---|
| Capacity | 4 Person |
| Infrared Heating | UL Listed Spectrum Plus™ infrared heaters combined with Carbon 360° infrared panels |
| Infrared Wattage | 2700W |
| Traditional Heater | Harvia KIP 4.5kW electric sauna heater with built-in controls |
| Traditional Heater Temperature | Up to 190°F |
| Infrared Temperature | Up to 170°F |

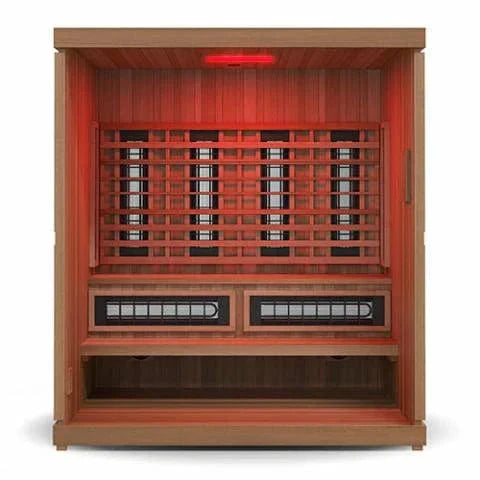

| Red Light | 192-diode LED panel capable of producing 650nm red light with chromotherapy |
| Interior | Western Canadian Cedar |
| Exterior | Thermal Plus™ Aspen |
| Controller | Built-in LCD touchscreen controller with Wi-Fi and Bluetooth audio |
| Audio | 6" HiFi speakers with Bluetooth audio |
| Glass | 8mm tempered glass with gasket |
| Benches | Extra-large two-tier bench system |
| EMF | Low EMF design tested by a NASA award-winning testing facility |
| Infrared Heaters | High-emissivity infrared heaters |
| Certification | ETL Certification |
Harvia KIP 4.5kW Traditional Sauna Heater

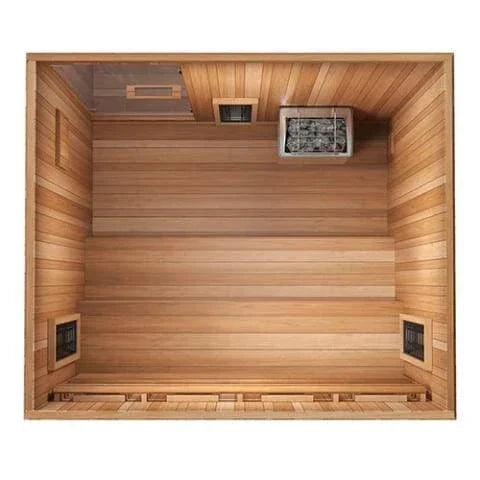

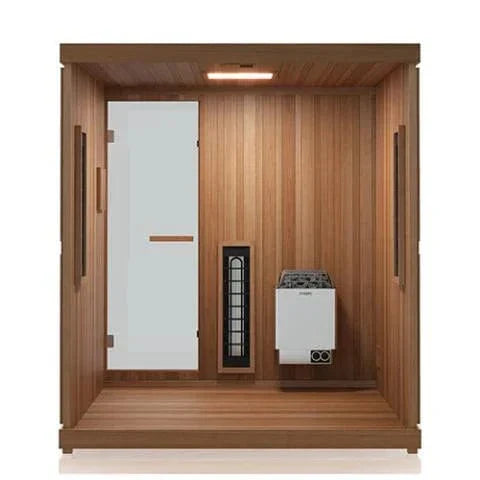

The FD-5 includes a Harvia KIP 4.5kW electric sauna heater with stainless steel construction and built-in controls. The wall-mounted heater is designed for sauna rooms from 100 to 210 cu. ft. and uses sauna stones that can be sprinkled with water to create steam.
| Feature | Details |
|---|---|
| Heater Model | Harvia KIP45B |
| Power | 4.5kW |
| Voltage | 240V |
| Phase | 1 Phase |
| Amperage | 18.8A |
| Room Size | 100 to 210 cu. ft. |
| Sauna Stones | Harvia AC3000 stones, 44 lbs included |
| Heating Elements | Industrial-grade, serviceable heating elements |
| Rock Contact | Direct rock-to-heating-element contact |
| Certification | UL Listed |
| Origin | Designed, engineered, and made in Finland |
| Dimensions | 16"W x 11"D x 24"H |
Electrical Requirements
The FD-5 uses separate electrical connections for its infrared and traditional heating systems. The infrared system operates at 240V / 15A with a NEMA 6-15 plug. The traditional Harvia KIP heater requires a 240V / 20A hardwired connection and should be installed by a licensed electrician.
| System | Electrical Requirements |
|---|---|
| Infrared System | 240V / 15A, NEMA 6-15 plug |
| Traditional Heater | 240V / 20A hardwired connection |
| Traditional Heater Installation | Licensed electrician recommended for installation |

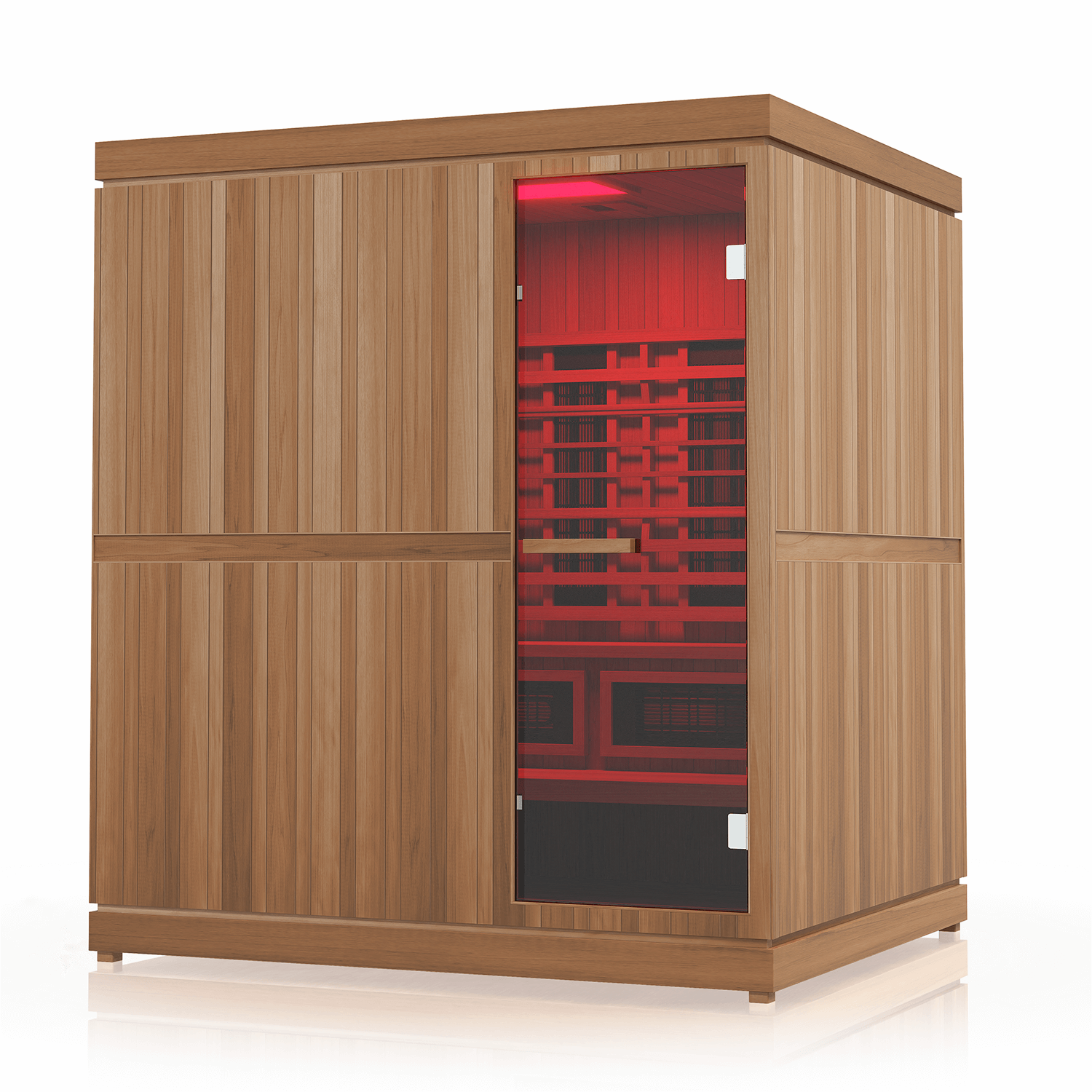

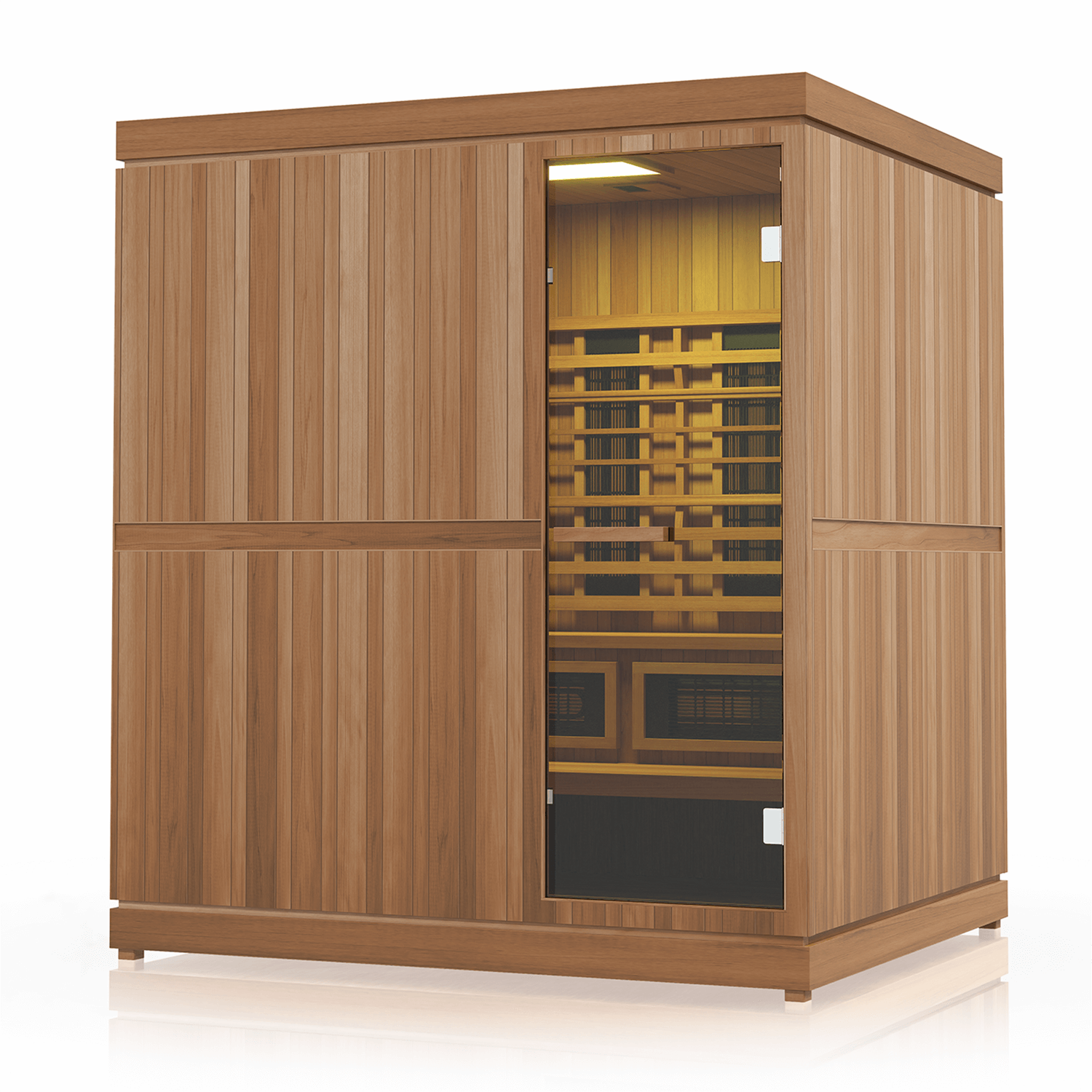

Spacious 4-Person Design
The FD-5 Trinity XL provides a generous interior designed for up to 4 people. The large two-tier bench system, 8mm tempered glass door, and spacious interior make this model well suited for larger home sauna spaces.
| Specification | Details |
|---|---|
| Capacity | 4 Person |
| Interior Dimensions | 71"W x 57.5"D x 75.5"H |
| Exterior Dimensions | 75"W x 64"D x 83"H |
| Room Volume | 130 cu. ft. |
| Door Dimensions | 23.625"W x 68.875"H |
| Door Handle Dimensions | 1.5"W x 13.25"H |
| Glass | 8mm tempered glass with gasket |
| Bench | Extra-large two-tier bench system |
Package Contents
| Included Item | Details |
|---|---|
| Sauna Panels | Bottom, top, back, front, left, and right panels |
| Glass Door | 8mm tempered glass door with handle |
| Bench | Bench support and extra-large two-tier bench system |
| Infrared Heater Panels | Spectrum Plus™ and Carbon 360° infrared heating panels |
| Traditional Heater | Harvia KIP Series 4.5kW sauna heater |
| Sauna Stones | 1 box of Harvia AC3000 sauna stones, 44 lbs |
| Red Light | Spectrum LED red light panel capable of producing 650nm red light with chromotherapy |
| Controller | Built-in LCD Wi-Fi touchscreen controller with Bluetooth audio |
| Audio | 6" HiFi speakers |
| Power Components | Heater cable, floor cable, power supply unit, power cable, screws, and interior heater connections with wood cover |
| Door Hardware | Door handle and mounting hardware |
| Certification | ETL Certification |
Specifications
| Specification | Details |
|---|---|
| Model | FD-5 |
| Capacity | 4 Person |
| External Materials | Thermo-Aspen |
| Interior Materials | Western Canadian Cedar |
| Infrared Voltage | 240V |
| Infrared Wattage | 2700W |
| Infrared Amperage | 15A |
| Infrared Plug Type | NEMA 6-15 |
| Traditional Heater | Harvia KIP45B, 4.5kW, 240V, 1PH |
| Traditional Heater Amperage | 18.8A |
| Traditional Heater Connection | 240V / 20A hardwired connection |
| Maximum Temperature | Infrared 170°F / Traditional 190°F |
| Interior Dimensions | 71"W x 57.5"D x 75.5"H |
| Exterior Dimensions | 75"W x 64"D x 83"H |
| Room Volume | 130 cu. ft. |
| Door Dimensions | 23.625"W x 68.875"H |
| Door Handle Dimensions | 1.5"W x 13.25"H |
| Glass Thickness | 8mm with gasket |
| Product Weight | 575 lbs |
| Heater Weight | 40 lbs |
The Finnmark FD-5 Trinity XL provides a spacious 4-person sauna experience with three integrated technologies: full spectrum infrared heating, traditional Harvia sauna heating, and red light with chromotherapy. With Western Canadian Cedar construction, Thermal Plus™ Aspen, a large two-tier bench system, touchscreen controls, Bluetooth audio, and both infrared and traditional heating options, the FD-5 is designed for a versatile home sauna setup.
