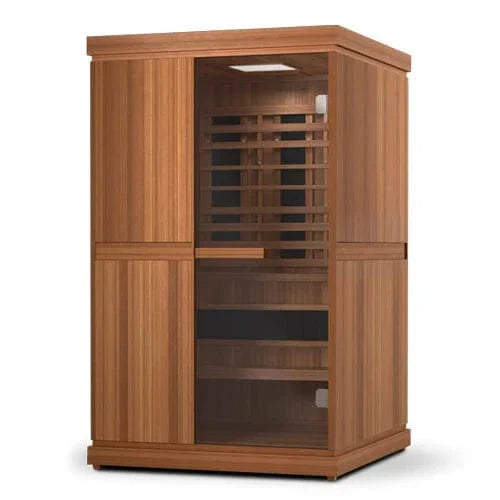

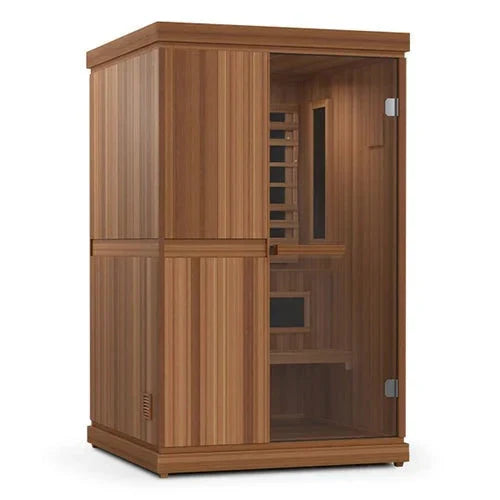

Finnmark FD-4 Trinity 2-Person Infrared & Traditional Hybrid Sauna

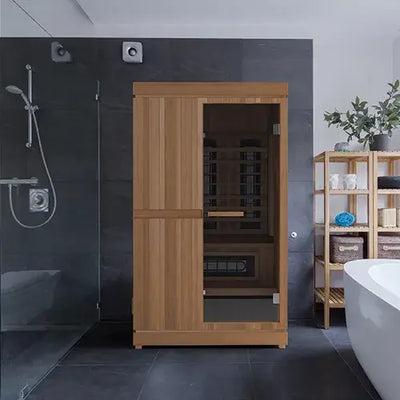

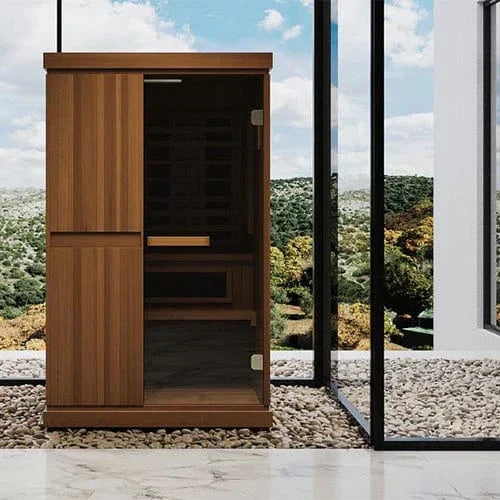

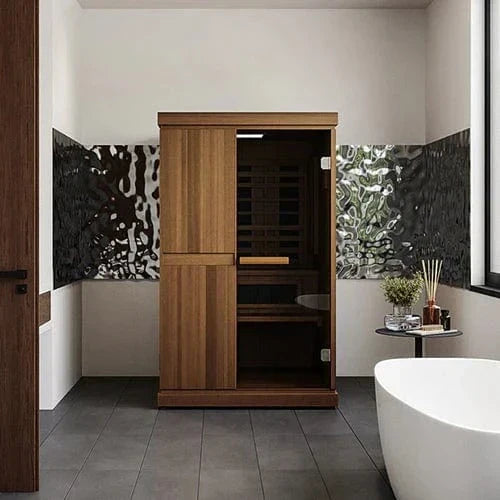

Finnmark FD-4 Trinity Infrared and Traditional 2-Person Hybrid Sauna
The Finnmark FD-4 Trinity 2-Person Hybrid Sauna combines Spectrum Plus™ infrared heating with a traditional Harvia Vega Compact 1900 sauna heater in one versatile sauna. The system also includes Spectrum LED near infrared ceiling lights with a 192-diode red light panel, allowing you to enjoy infrared heat, traditional sauna heat, and integrated lighting in one design.

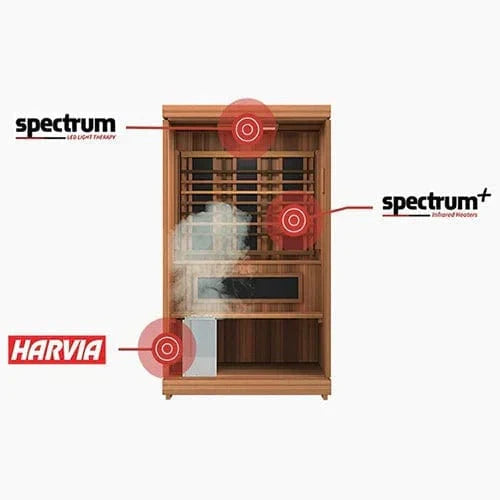

3-in-1 Infrared, Traditional & Red Light System
The FD-4 Trinity combines UL Listed Spectrum Plus™ infrared heaters, a traditional Harvia sauna heater, and Spectrum LED near infrared ceiling lighting. This combination gives you the flexibility to use infrared heating, traditional rock heating, or the integrated lighting system according to your preference.
| Heating & Lighting System | Details |
|---|---|

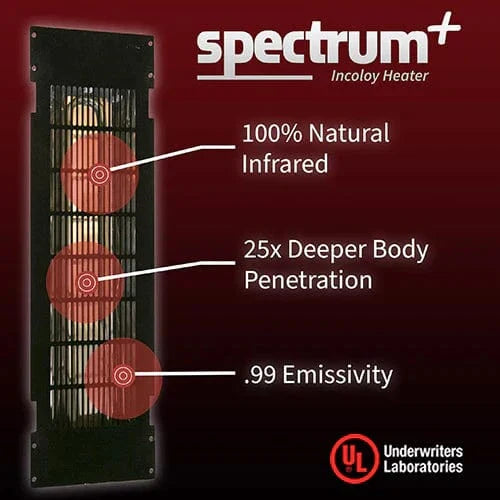

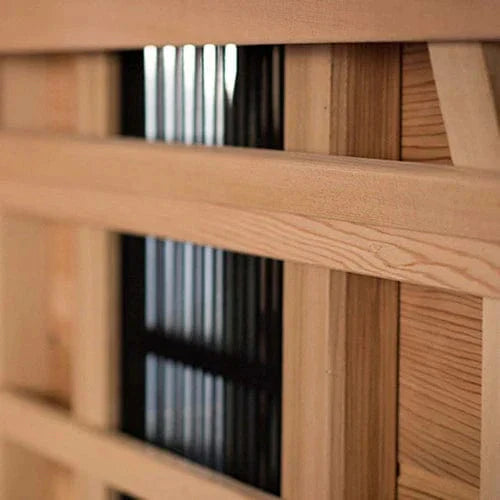

| Spectrum Plus™ Infrared | UL Listed short-wave infrared heaters |
| Spectrum Carbon Heating | Carbon long-wave infrared heating for 360° heat coverage |
| Traditional Heating | Harvia Vega Compact 1900 traditional sauna heater |

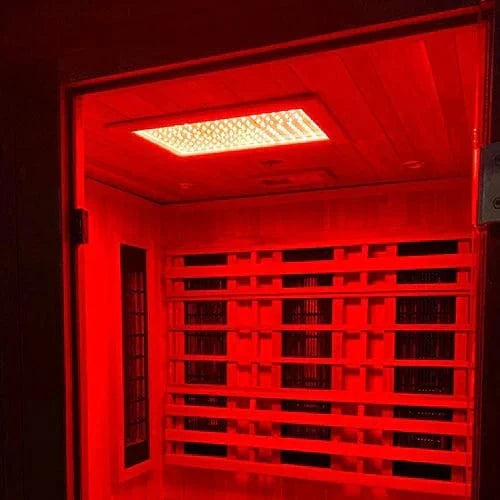

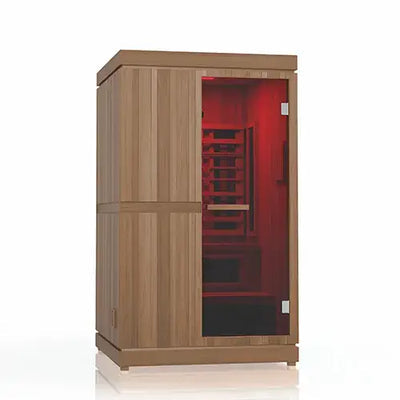

| Red Light | 192-diode LED panel producing 650nm red light |
| Chromotherapy | Integrated chromotherapy lighting |
| Low EMF | Low EMF design tested by a NASA award-winning testing facility |

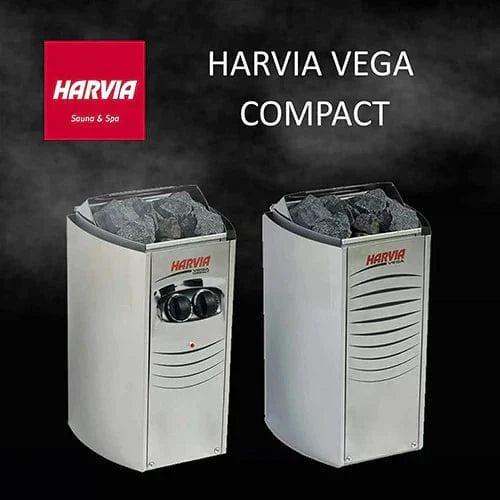

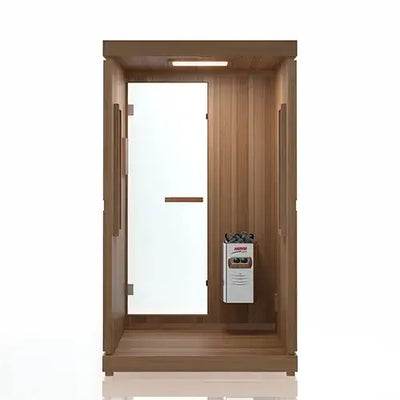

Harvia Vega Compact 1900 Traditional Sauna Heater
The FD-4 includes a Harvia Vega Compact 1900 traditional electric sauna heater. Its wall-mounted stainless steel design is sized for sauna rooms from 70 to 106 cubic feet and uses sauna stones for traditional sauna heating.
| Feature | Details |
|---|---|
| Heater | Harvia Vega Compact 1900 |
| Power | 1.9kW |
| Design | Wall-mounted |
| Construction | Stainless steel |
| Sauna Room Size | 70 to 106 cu. ft. |
| Sauna Stones | Minimum 29 lbs |
| Controls | Built-in controls with ergonomic operating switches |
| Switch Position | Operating switches can be installed on the right or left side |
| Origin | Designed, engineered, and made in Finland |
| Dimensions | 11"W x 11"D x 21"H |

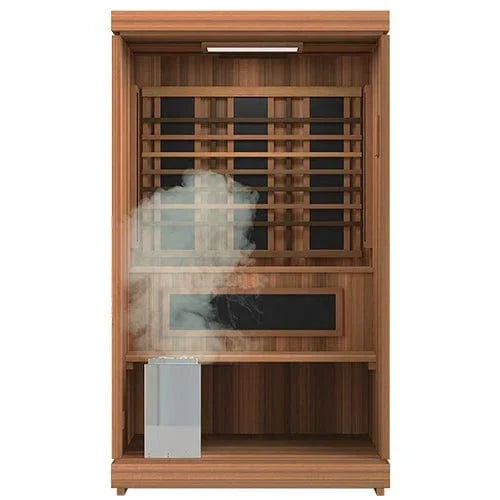

The traditional heater allows water to be added to the heated sauna stones for a steam sauna experience.

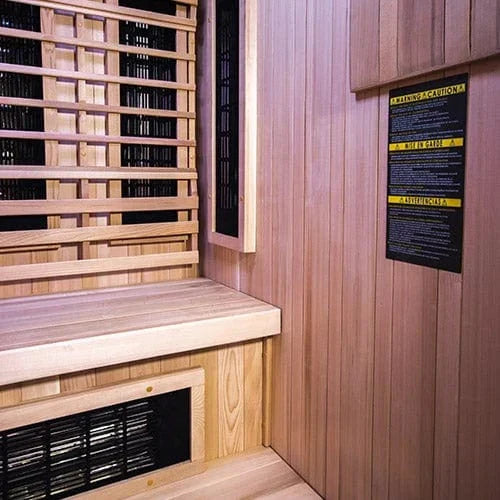

Premium Cedar & Thermal Aspen Construction
The FD-4 Trinity combines a natural Western Canadian Cedar interior with a Thermal Plus™ Aspen exterior.
| Construction | Details |
|---|---|
| Interior | A-Grade Western Canadian Cedar |
| Exterior | Thermal Plus™ Aspen |
| Interior Characteristics | Naturally antimicrobial cedar interior |
| Exterior Characteristics | Heat-treated Aspen designed for stability |

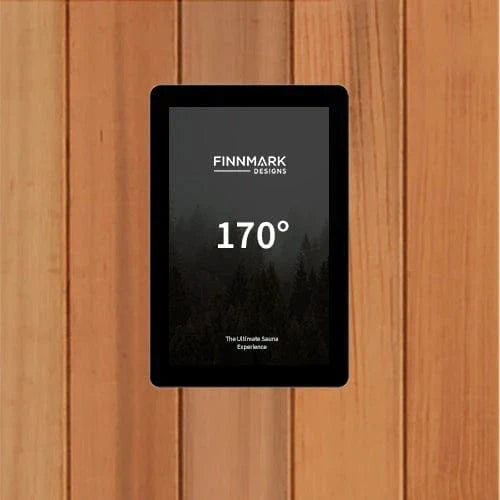

Built-In LCD Touchscreen & Bluetooth Audio
The Trinity features a built-in LCD touchscreen controller with Bluetooth audio, along with an upgraded audio system featuring 6-inch HiFi marine-grade speakers.
| Feature | Details |
|---|---|
| Controller | Built-in LCD touchscreen controller |
| Bluetooth | Bluetooth audio connectivity |
| Speakers | 6" HiFi marine-grade speakers |

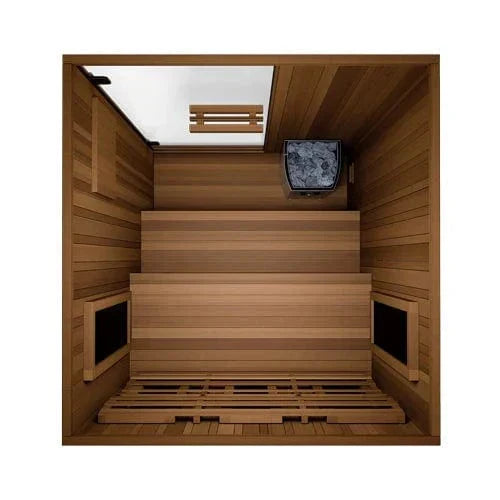

Spacious 2-Person Interior
The FD-4 features an extra-large two-tier bench system and an 8mm tempered glass door designed for thermal retention.
| Feature | Details |
|---|---|
| Capacity | 2 Person |
| Interior Dimensions | 44.25"W x 45.5"D x 75.5"H |

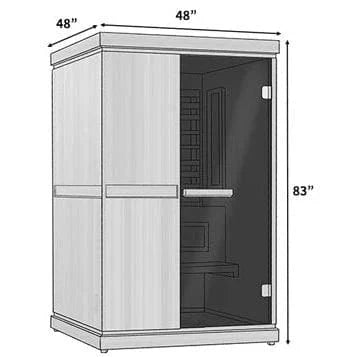

| Exterior Dimensions | 48"W x 48"D x 83"H |
| Room Volume | 86 cu. ft. |
| Bench | Extra-large two-tier bench system |
| Glass | 8mm tempered glass with gasket |
| Door Dimensions | 23.625"W x 68.875"H |
| Door Handle | 1.5"W x 13.25"H |
Electrical & Temperature Specifications
| Specification | Details |
|---|---|
| Model | FD-4 |
| Voltage | 120V |
| Infrared Wattage | 1750W |
| Amperage | 15/20A |
| Infrared Plug | NEMA 5-15P |
| Traditional Heater | 120V hardwired |
| IR Maximum Temperature | 170°F |
| Traditional Maximum Temperature | 190°F |
| Traditional Heater | Harvia Vega Compact 1900, 1.9kW |
| Traditional Heater Rating | 70 to 106 cu. ft. |
Package Contents
| Included Item | Details |
|---|---|
| Sauna Panels | Bottom, top, back, front, left, and right panels |
| Glass Door | Included |
| Bench | Bench support and bench top |
| Harvia Heater | Harvia Vega Compact 1900 traditional sauna heater |
| Sauna Stones | 1 box of Harvia AC3000 sauna stones, 29 lbs |
| Infrared Heater Panels | Spectrum Plus infrared heater panels |
| Near Infrared Lighting | Spectrum LED near infrared ceiling lights with 650nm red light panel |
| Controller | LCD touchscreen controller with Bluetooth audio |
| Audio | 6" HiFi speakers |
| Tempered Glass | 8mm tempered glass with gasket |
| Adjustable Feet | Removable and adjustable sauna feet for uneven surfaces |
| Assembly Hardware | Cables, screws, power supply unit, power cable, heater connections, and door handle |
| Certification | ETL Certification |
Product Specifications
| Specification | Details |
|---|---|
| Model | FD-4 |
| External Materials | Thermo-Aspen |
| Interior Materials | Western Red Cedar |
| Infrared Wattage | 1750W |
| Amperage | 15/20A |
| Infrared Plug | NEMA 5-15P |
| Traditional Heater | Harvia Vega Compact 1900, 1.9kW |
| Traditional Heater Connection | 120V hardwired |
| IR Maximum Temperature | 170°F |
| Traditional Maximum Temperature | 190°F |
| Interior Dimensions | 44.25"W x 45.5"D x 75.5"H |
| Exterior Dimensions | 48"W x 48"D x 83"H |
| Room Volume | 86 cu. ft. |
| Door Dimensions | 23.625"W x 68.875"H |
| Door Handle Dimensions | 1.5"W x 13.25"H |
| Glass Thickness | 8mm with gasket |
| Product Weight | 437 lbs |
Summary
The Finnmark FD-4 Trinity 2-Person Hybrid Sauna combines Spectrum Plus™ infrared heating, Spectrum Carbon heating, a Harvia Vega Compact 1900 traditional sauna heater, and Spectrum LED near infrared ceiling lighting with a 650nm red light panel. With a Western Canadian Cedar interior, Thermal Plus™ Aspen exterior, two-tier bench system, LCD touchscreen controller, Bluetooth audio, 6" HiFi speakers, and 8mm tempered glass, the FD-4 provides a versatile combination of infrared and traditional sauna heating in one compact design.
Free Shipping: Finnmark Saunas ship free within the 48 contiguous United States. This includes the sauna, heater (if applicable), and any accessories included in your order. For deliveries to Canada or other locations, please contact us for a customized quote.
Shipping Times: Delivery times vary depending on the specific Finnmark model and current availability. Some units ship quickly, while others may require additional lead time. For the most accurate estimate, please contact us.
Freight Delivery: Your sauna arrives as a DIY kit, securely packed on a large pallet and delivered via LTL freight. The driver will lower it to the ground at the curb (curbside delivery) and contact you in advance to schedule a convenient delivery time.
Delivery: From there, you can move the individual panels to your build site. Most pieces are easy to handle with two people. At the driver's discretion, your sauna may be placed inside a nearby garage.
Tracking & Packaging: Each shipment includes tracking updates and protective packaging to ensure a smooth delivery.
Assembly: Most Finnmark Saunas can be fully assembled by two people in less than a day, and our team is always available to assist if you have any questions.
If you need help or have any questions about your shipment, we're here to assist you.
Finnmark Designs Warranty
Finnmark Designs provides warranty coverage to the original purchaser of a new sauna when the sauna is installed according to the provided installation instructions, properly and reasonably maintained, not subjected to damage, misuse, or abuse, and used for residential purposes.
Residential Warranty Coverage
-
Sauna Cabin (All Wood): 10 Years
-
Controls & Power Supply: 10 Years
-
Spectrum Plus™ Heaters: Lifetime
-
Spectrum Carbon Heaters: 10 Years
-
LED Lighting: 10 Years
-
Remotes: 1 Year
-
Cushion (Optional): 1 Year
-
Outdoor Cover (Optional): 10 Years
-
Non-Factory Installed Components: No Coverage
